Batlogger WE X2

€3.599,00 Incl. tax
Availability: Out of stock

The Batlogger WE X2 is the eminent bat detector for wind turbines able to record bats for a very long time at different heigths. It has a remote connection and versatile alarms and comes supplied with additonal sensors and a microphone test.

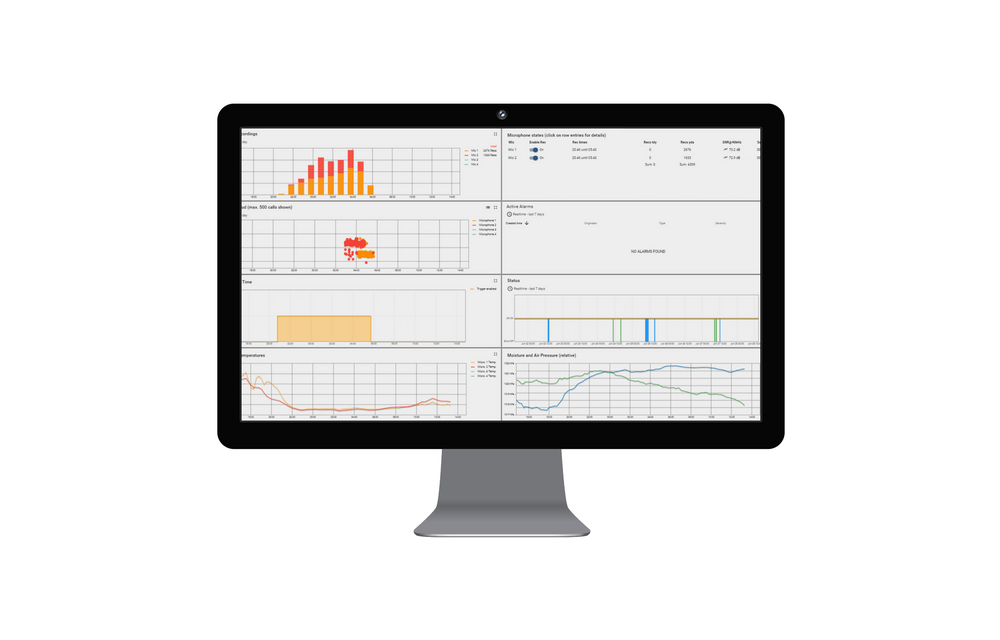

Thanks to the Batlogger WE X2, X1 and X4 you can monitor bats from your office. Monitor your device, change settings or download the recordings. Simply everything can be done remotely. With the Batlogger WE X2 in combination with the Batlogger Connect software you can save costs with less driving time and less dangerous climbing on top of wind turbines. Two months of Batlogger Connect Gold are added to the purcahse of a Batlogger WE X2, X1 or X4.

In short:

  • Remote monitoring,
  • You can use up to 2 microphones with cable length up to 100 metres,

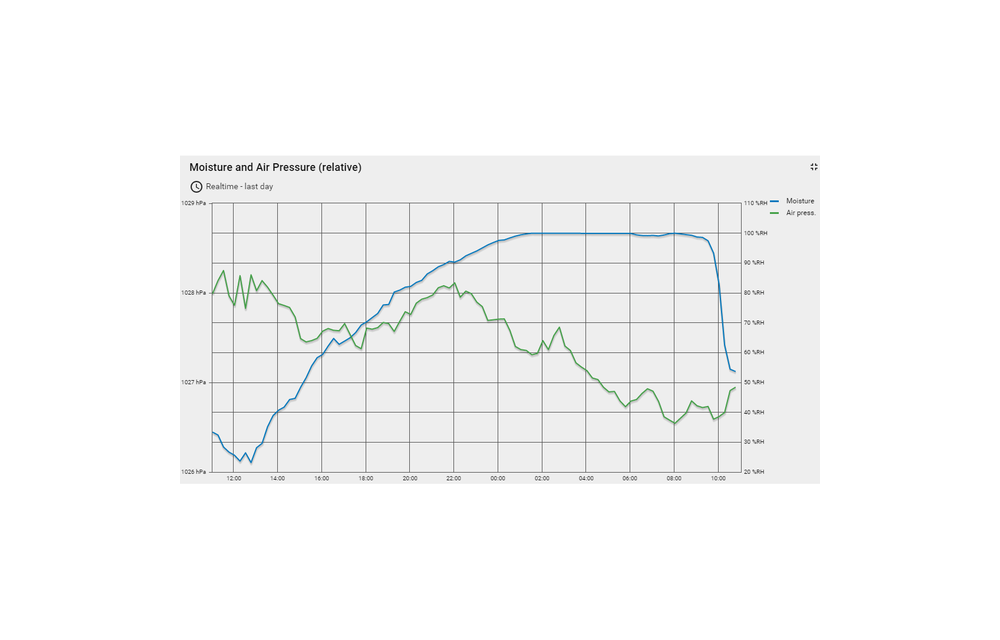

  • It adds lots of additional environmental data to your studies.

Scope of delivery:

  • The Batlogger WE X2
  • 2 x Batlogger X Microphoness
  • 2 x Sensors (microphone test, air pressure, humidity)
  • 2 x waterproof Y-cables 5 meter
  • 1 x Round mounting bracket for gondola mounting
  • 1 x Mounting bracket without LTE for second microphone/sensor



Specifications

Field of application Wind turbine monitoring
Audio/Recording
Acoustic signal processing Real time 16bit-full spectrum
Type of microphone BATLOGGER X Microphone
Number of microphones 2
Sensitivity range 10–150kHz
Trigger function yes
Scheduler yes, adjustable, with sunset/sunrise times
Automatic microphone test yes
Storage Internal hard disk (for approx. 100GByte user data)
Datatransfer BATLOGGER Connect cloud synchronisation
SD/SDHC/SDXC cards (SD 2.0), max. 128 GB, FAT32 formatted
external hard disk via USB port, FAT32 or ext4 formatted
USB stick formatted via USB port, FAT32 or ext4
Operation
Display Status LEDs
Interface Webinterface
Connectivity BATLOGGER Connect
Remote monitoring, configuration and data synchronisation
Cellular radio 4G LTE (Europe/APAC or N. America)
Sensors
Temperature yes
Humidity 0 .. 100% RH relative humidity
± 3% RH (max), 0–80% RH
Air pressure 500 hPa .. 1100 hPa Measuring range absolute air pressure
Calibratable to relative air pressure of the location
Accuracy relative air pressure ±0.5 hPa (-10 .. 50°C)
Casing
Size (WxLxD) 250 x 200 x 100 mm
Weight 2.04kg
Protection class IP30
Operating conditions 0… 45°C
10..90 %RH (non-condensing)
Charging mode: 0..+40°C
Power
Power supply 100-240 VAC, (12 VDC 30W)
Operating time

Manual
