    Edge Digital USB Microscope AF4115ZT

    € 609,85 1 In stock: Ordered on working days before 17:00, shipped the same day.
    • Free shipping in the Netherlands from € 35, -
    • Ordered before 5 p.m. on working days? Shipped the same day!
    • 14-day money back guarantee
    • We are happy to think along!

    Product description

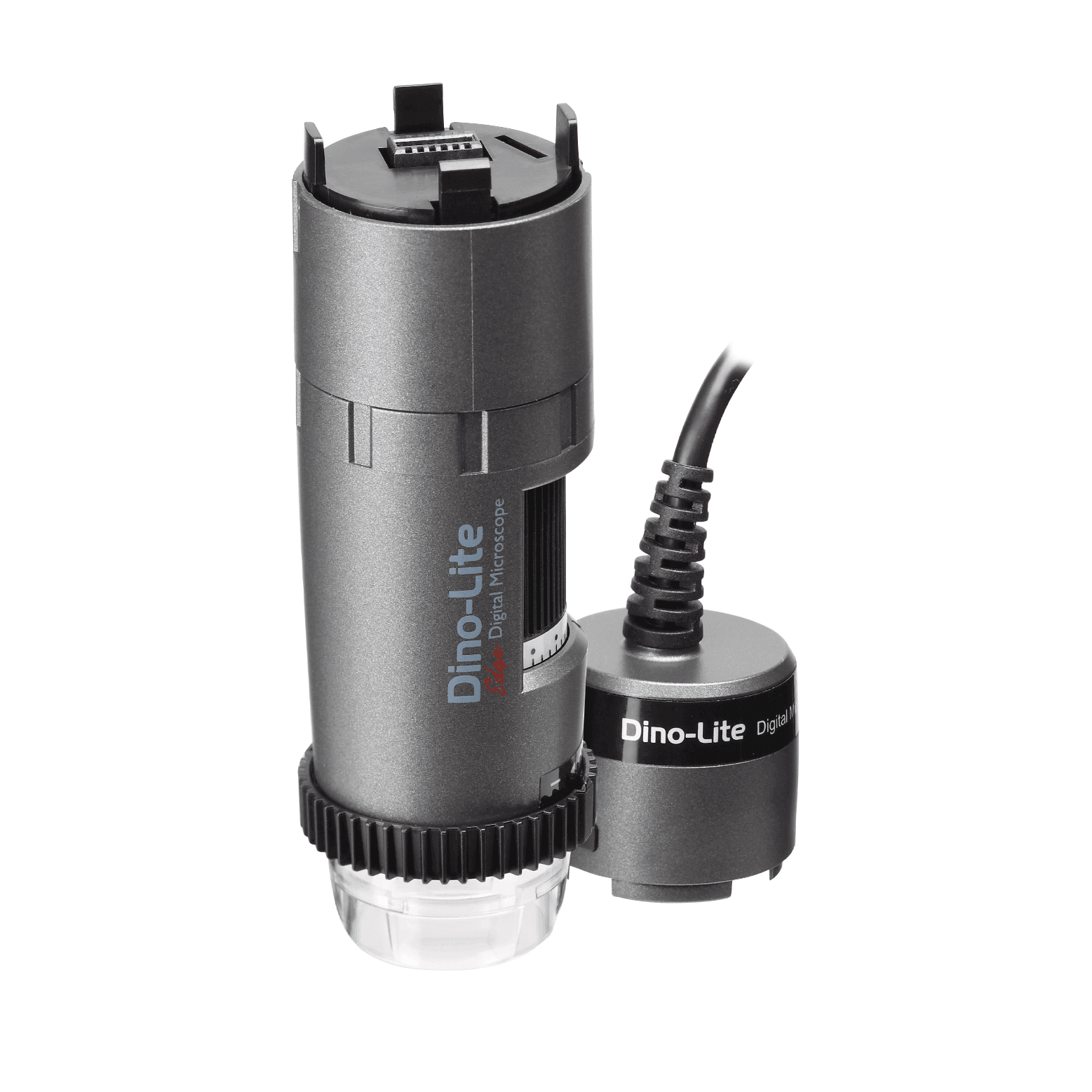

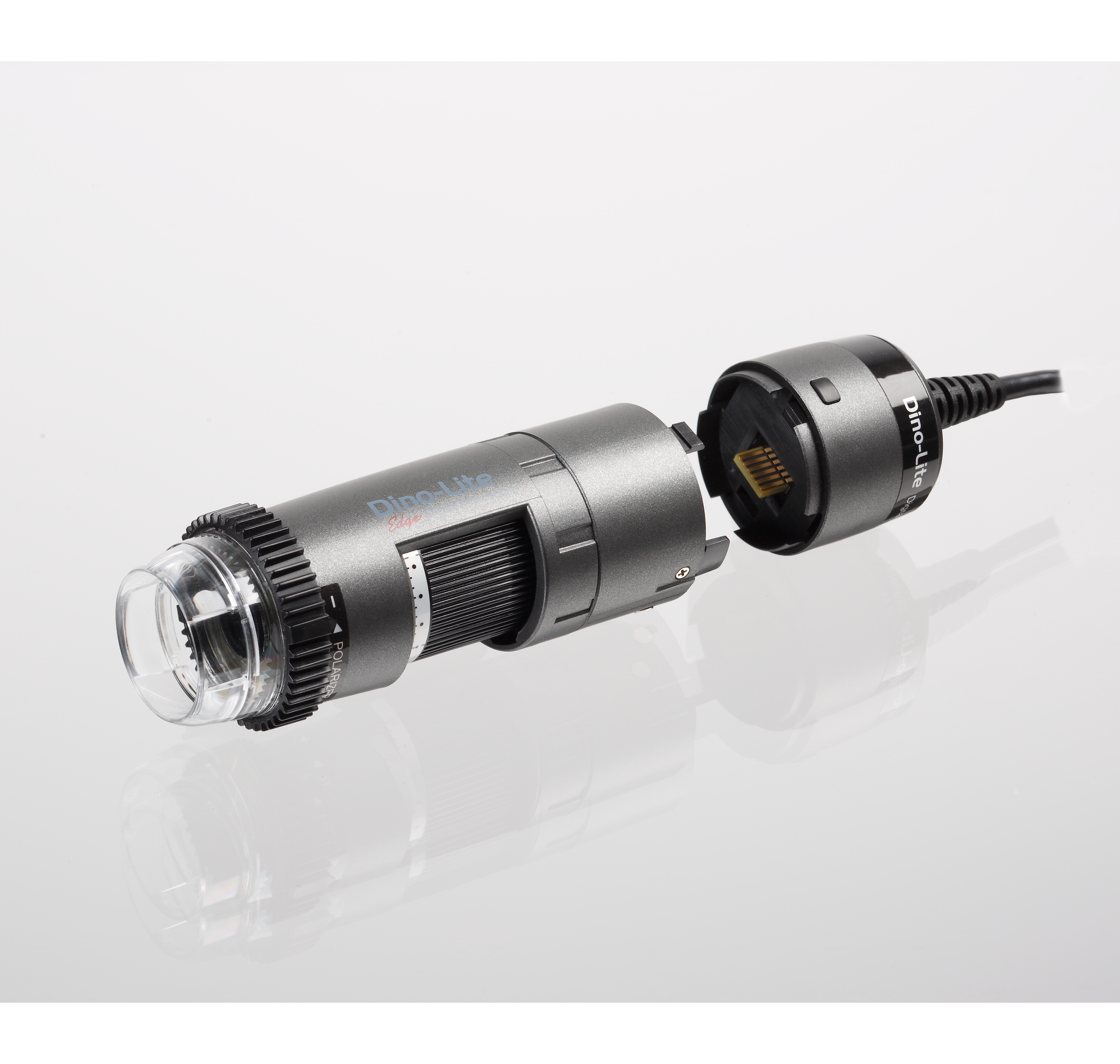

    The Dino-Lite AF4115ZT is part of Universal series and connects to your device via USB. The AF4115ZT is Wireless-ready, but requires the WF-20 WiFi Streamer to make it a fully wireless solution.

    The main features of the AF4115ZT are:

    • Wireless-ready, requires the WF-20 adapter (optional)
    • 1.3MP EDGE SENSOR
    • 20-220x magnification
    • Integrated Polarizer (anti-reflection)
    • Flexible LED Control (FLC)

    Specifications

    Lighting

    • Light/ LED type: White
    • Number of LEDs: 8
    • LED on/off switchable: Yes
    • Infrared filter: IR cut-filter >650 nm
    • Diffuser available: Yes (N3C-D included)
    • Polarizer: Yes, linear

    Optics

    • Magnification: 20-220x
    • Macro zoom: No
    • Working distance: Standard
    • Lens type: Glass with anti-reflection coating

    Sensor

    • Sensor type: CMOS
    • Resolution: 1.3 Megapixel (1280x1024)
    • Maximum frame rate: 30 fps

    Compatibility

    • Interface: USB 2.0
    • Operating system: Windows 7, 8 & 10, MacOS 10.12 and up
    • Included software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS, no EDOF, EDR)
    • WiFi: Wireless-ready, requires the WF-20 adapter (optional)
    • Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
    • Supported video formats (Windows): WMV, FLV, SWF
    • Supported image formats (MacOS): JPEG, PNG
    • Supported video formats (MacOS): MOV
    • Imaging standards: DirectShow, UVC

    Housing

    • Housing material: Composite/plastic housing
    • Magnification lock: Yes
    • Dimensions: 11.4cm (L) x 3.3cm (D)
    • Weight: 111g
    • Cable length: 1.8m



    Contents:

    1. Microscope,
    2. Carry pouch,
    3. Software CD,
    4. Calibration target,
    5. User manual,
    6. N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-Extension cap, N3C-L- Long cap, N3C-S- Side light cap
    7. 2 years European warranty



    Specifications

    Article number
    AF4115ZT
