Surber Sampler Small Complete

Article number: 226472 + 229061
Availability: Out of stock
Delivery time: 1-4 Weeks

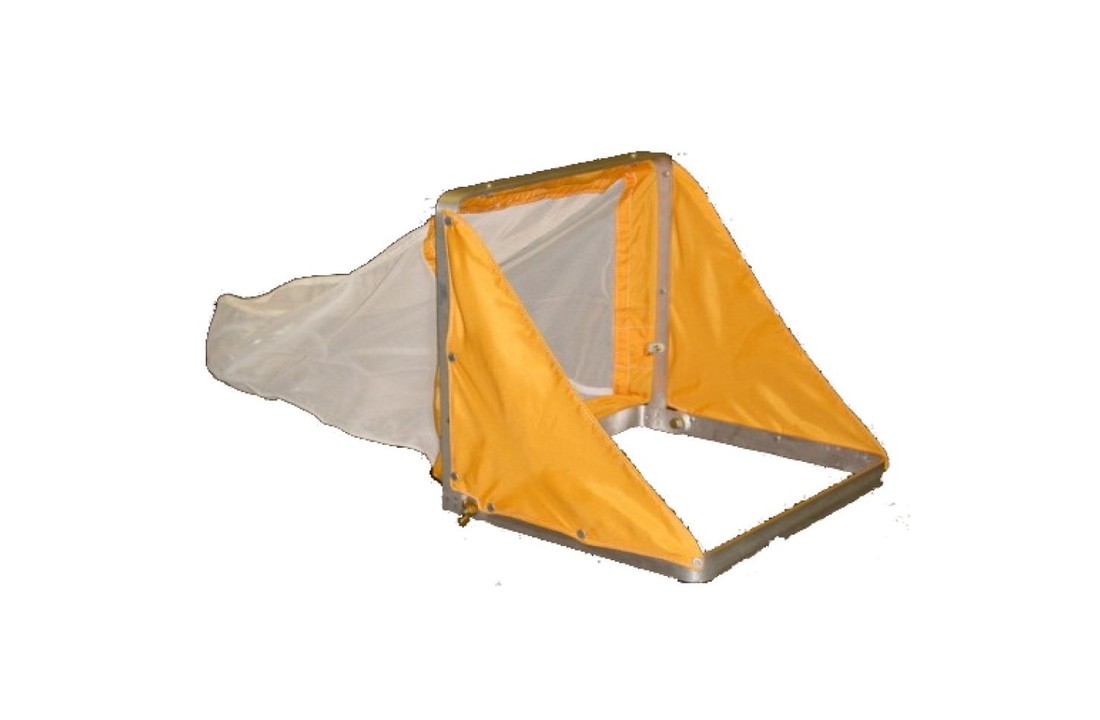

The Surber Sampler is designed for quantitative sampling when the current is equal to or less than 10cm/second. The frame for the Surber Sampler  is made from aluminium alloy and riveted for strength. The nylon screens reduce the loss of animals from around the mouth of the net, whilst folding flat for easy transport. The Surber Sampler Frame is available in three sizes: Small, Medium and Large.

Dimensions Small Frame:

  • Quadrat size - 200mm x 200mm
  • Sampling size - 0.04m2

The high quality net bags are to fit the small sized surber frame. They connect to the frame by threading onto an inner brass ring which attaches to the outer frame using a series of brackets, held in place with nuts and bolts. This means that the net collar is protected from rubbing on the river substrate by the outer frame; this considerably reduces wear and tear. The collar is made from strong nylon which also helps to improve longevity. The end of the open net is fitted with a removable screw-on filter which has the same mesh size as the main part of the net.

Available with closed end or open end including a net filter with 1mm, 500µm and 250µm mesh.

  • Net bag width: 200 x 200mm
  • Net bag depth: 350mm
  • Net bag material: Woven polyester mesh
