    Box-Set voor Batcorder 3.1

    €2.127,- 0 Op voorraad: 3-6 weken
    3 variaties Box set with Extension 4.0
    • Gratis verzending in Nederland vanaf €35,-
    • Op werkdagen voor 17:00 uur besteld? Zelfde dag verzonden!
    • Niet goed? Geld terug
    • We denken graag met u mee!

    Productomschrijving

    Box set voor Batcorder 3.1 en oudere modellen. Verkrijgbaar met of zonder extensie 4.0 en als los element:

    • Box set with extension 4.0: for use with batcorder 3.0 & 3.1 (not included), incl. disc microphone, Extension 4.0 with integrated LTE module (connection to solar panel possible), power cable, leadgel battery (6V 12Ah), battery cable, protective box and all necessary brackets for secure mounting of the individual components in the box
    • Box set without extension 4.0: for use with batcorder 3.0 & 3.1 (not included), incl. disc microphone, power cable, leadgel battery (6V 12Ah), battery cable, protective box and all necessary brackets for secure mounting of the individual components in the box. Without Extension 4.0.
    • Extension 4.0 single: for use with batcorder 3.0 & 3.1 (not included), Extension 4.0 module only without accessories



    Passive bat monitoring for prolonged time span

    For planning in advance of wind parks, examining roost use as well as for many other bat acquisition tasks longterm monitoring is very useful. Usually activity needs to be recorded for a time span of multiple weeks or even months. A technically challenging task.

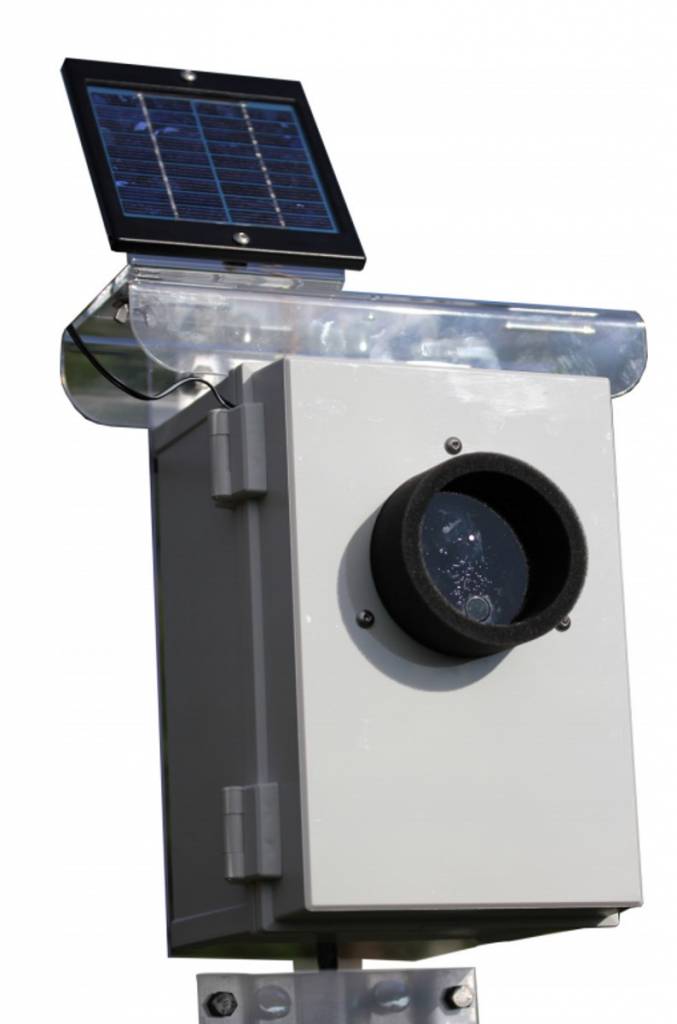

    The box extension for the batcorder simplifies this task. The batcorder is contained within a robust plastic box. The borderline microphone is installed in the box cover and additionally protected by a foam ring. A specifically designed controle module allows connection of 6V to 17 V batteries. The set is sold with a 6V / 12 Ah lead-gel rechargeable battery. This can be recharged using solar panels (optional). Thus, the maximal runtime of the batcorder is limited only by the SDHC card's capacity, and is depending on bat activity two to three months.

    The box is based on experiences gained from the wind turbine extension, which is successfully used since more than a year. Thus, we added a microphone test to the box extension, to detect deviances from calibrated sensitivity. If the microphone is damaged by rain or dirt, the controle module reports this per SMS.

    At the end of each recording interval (night), the box also sends a detailed status update to a freely choosable cell phone number. This message contains the number of recordings of the last night, overall number of recordings, memory capacity of the SDHC card, microphone sensitivity as well as other error conditions like empty battery. All you need is a standard SIM card, which you can install yourself easily. Prerequisite is reasonably well cell coverage at the location.


    Reasonable longterm monitoring

    Depending on the expected results long term monitoring can be very powerful. Nevertheless some prerequisites at the location are necessary for optimal use of the batcorder. The box should be set up spaced to reflective surfaces above, below, to the sides as well as to the front to reduce echos. If installed on a mast, the box should face away from the main direction of weather to reduce rain exposure of the microphone. Electromagnetic fields (power lines and such) as well as known ultrasound sources (for example ultrasound based humidity sensors) should be avoided. We recommend to test before installation if such sources can not be avoided.

    Monitoring for multiple years, as asked for by some officials, is even with state-of-the-art devices not possible without regular maintenance. Microphones age more quickly and should be tested after a year. The device should also be deinstalled before winter to avoid.

    Installation and usage

    When setting up the box you should always properly fixate the box. At locations with higher visitor rate, the box should be locked and be installed out of easy reach. If installed on a mast we recommend you ask the mast producer, so a technician can do the installation.

    Deployed material and accessories

    The standard box extension contains the plastic box including material for attachment of batcorder and control module. The controle module and a 6V / 12 Ah lead-gel battery is included as well. One solar panel is included. Can also be ordered without solar panel.

    In addition you need:
    • batcorder 3.1
    • solar panel (optional)
    • SDHC card
    • SIM-card to send a daily status message (prerequisite is a reasonably well cell coverage)

    Specificaties

    Artikelnummer
    0004
