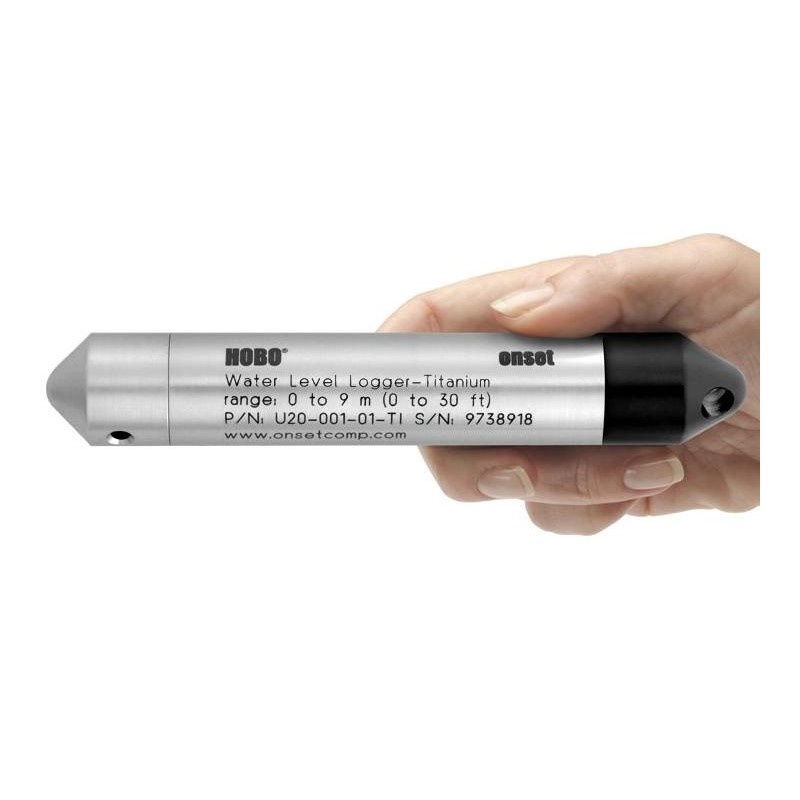

    HOBO Titanium Waterniveau Datalogger Zoutwater (0-9 m) U20-001-01-Ti

    €1.242,55
    • Inclusief 21% btw: €1.242,55
    • Exclusief btw: €1.026,90
    0 Op voorraad: 3-6 weken
    The HOBO Water Level Titanium is recommended for saltwater deployment for recording water levels and temperatures in wetlands and tidal areas.... Toon meer
    • Gratis verzending in Nederland vanaf €35,-
    • Op werkdagen voor 17:00 uur besteld? Zelfde dag verzonden!
    • Niet goed? Geld terug
    • We denken graag met u mee!

    Productomschrijving

    The HOBO water level data logger features high accuracy at a great price and ease-of-use, with no cumbersome vent tubes or desiccants to maintain. This data logger is ideal for recording water levels and temperatures in shallow wells, streams, lakes and freshwater wetlands.

    Highlighted Features

    • Lightning protection - no long signal wires, and electronics are shielded in stainless steel housing for use in freshwater (see the Water Level logger sensor location drawing)
    • HOBOware Pro software provides easy conversion to accurate water level reading, fully compensated for barometric pressure (see demo) temperature, and water density.
    • Multiple-rate sampling (see demo) allows faster sampling at critical times such as when pumping starts or stops.
    • Available in 4 depth ranges
    • Ideal for use in wells, streams, lakes, wetlands and tidal areas
    • No-vent-tube design for easy reliable deployment
    • Available in stainless and titanium versions
    • Durable ceramic pressure sensor
    • 3-point NIST-traceable calibration certificate included

    In what environment does this data logger operate?

    This data logger operates in outdoor and underwater environments.



    What measurements does this data logger support?

    These data loggers supports the following measurements: Absolute Pressure, Barometric Pressure, Temperature and Water Level



    Specifications

    Pressure and Water Level Measurements U20-001-01 and U20-001-01-Ti
    Operation Range0 to 207 kPa (0 to 30 psia); approximately 0 to 9 m (0 to 30 ft) of water depth at sea level, or 0 to 12 m (0 to 40 ft) of water at 3,000 m (10,000 ft) of altitude
    Factory Calibrated Range69 to 207 kPa (10 to 30 psia), 0° to 40°C (32° to 104°F)
    Burst Pressure310 kPa (45 psia) or 18 m (60 ft) depth
    Water Level Accuracy*Typical error: ±0.05% FS, 0.5 cm (0.015 ft) water
    Maximum error: ±0.1% FS, 1.0 cm (0.03 ft) water
    Raw Pressure Accuracy**±0.3% FS, 0.62 kPa (0.09 psi) maximum error
    Resolution<0.02 kPa (0.003 psi), 0.21 cm (0.007 ft) water
    Pressure Response Time (90%)***<1 second; measurement accuracy also depends on temperature response time
    Temperature Measurements (All Models)
    Operation Range-20° to 50°C (-4° to 122°F)
    Accuracy±0.44°C from 0° to 50°C (±0.79°F from 32° to 122°F), see Plot A in manual
    Resolution0.10°C at 25°C (0.18°F at 77°F), see Plot A in manual
    Response Time (90%)5 minutes in water (typical)
    Stability (Drift)0.1°C (0.18°F) per year
    Logger
    Real-time Clock± 1 minute per month 0° to 50°C (32° to 122°F)
    Battery2/3 AA, 3.6 Volt lithium, factory-replaceable
    Battery Life (Typical Use)5 years with 1 minute or greater logging interval
    Memory (Non-volatile)64K bytes memory (approx. 21,700 pressure and temperature samples)
    WeightStainless steel models: approximately 210 g (7.4 oz)
    Titanium models: approximately 140 g (4.8 oz)
    Dimensions2.46 cm (0.97 inches) diameter, 15 cm (5.9 inches) length; mounting hole 6.3 mm (0.25 inches) diameter
    Wetted Materials316 stainless steel, Viton® o-rings, acetyl cap, ceramic sensor
    Logging IntervalFixed-rate or multiple logging intervals, with up to 8 user-defined logging intervals and durations; logging intervals from 1 second to 18 hours. Refer to the HOBOware software manual.
    Launch ModesImmediate start and delayed start
    Offload ModesOffload while logging; stop and offload
    Battery IndicationBattery voltage can be viewed in status screen and optionally logged in datafile. Low battery indication in datafile.
    Environmental RatingIP68

    Handleiding

    Specificaties

    Artikelnummer
    U20-001-01-Ti
