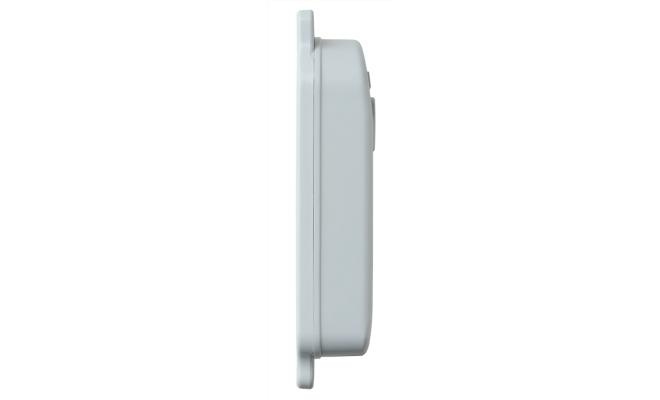

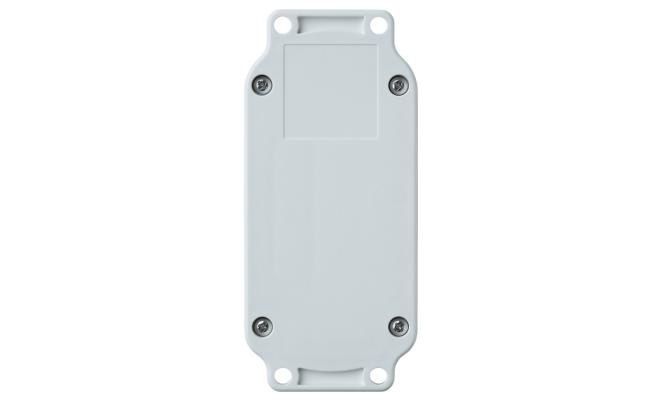

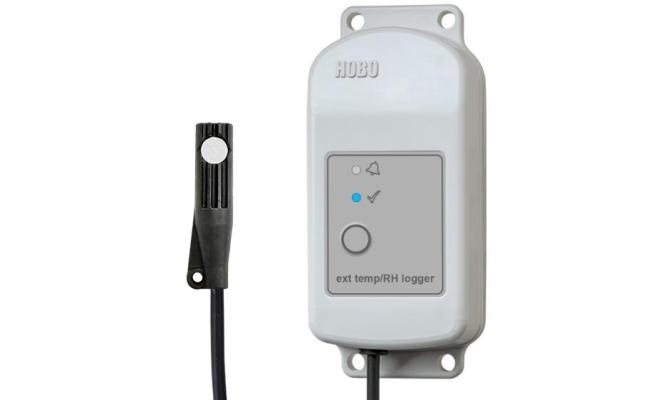

    HOBO Externe Temperatuur/Relatieve Vochtigheid Sensor Datalogger MX2302A

    €359,81
    • Inclusief 21% btw: €359,81
    • Exclusief btw: €297,36
    0 Op voorraad: 3-6 weken
    A weatherproof data logger with external temperature and relative humidity sensors. leveraging Bluetooth for easy setup and data download.... Toon meer
    • Gratis verzending in Nederland vanaf €35,-
    • Op werkdagen voor 17:00 uur besteld? Zelfde dag verzonden!
    • Niet goed? Geld terug
    • We denken graag met u mee!

    Productomschrijving

    The MX2302A is a weatherproof data logger with external temperature and relative humidity sensors. Leveraging Bluetooth technology for easy setup and data download directly to your mobile device or Windows computer running Onset's free HOBOconnect app, this logger delivers high-accuracy measurements in harsh outdoor environments.

    Please note: Requires a compatible mobile device or Windows computer and the HOBOconnect app.

    Features:

    • Convenient wireless setup and download via Bluetooth (100-foot range)
    • Retrieve data in hard-to-reach locations
    • Visual alarms alert you to out-of-range conditions
    • Compact, weatherproof housing with built-in mounting
    • View current data in real time with Onset’s free HOBOconnect app
    • Share downloaded data easily from your mobile device
    • Accuracy: +/- 0.2C° and +/- 2.5% RH

    Specifications Hobo External Temperature/Relative Humidity Sensor Data Logger MX2302A

    Temperature Sensor
    RangeMX2302A external temperature sensor: -40 to 70°C (-40 to 158°F)
    Accuracy±0.25°C from -40 to 0°C (±0.45 from -40 to 32°F)
    ±0.2°C from 0 to 70°C (±0.36 from 32 to 158°F)
    ±0.25°C from 70 to 100°C (±0.45 from 158 to 212°F), MX2303 and MX2304 only
    ResolutionMX2301A and MX2302A: 0.02°C (0.036°F)
    Drift<0.01°C (0.018°F) per year
    Relative Humidity Sensor
    Range0 to 100% RH, -40° to 70°C (-40° to 158°F); exposure to conditions below -20°C (-4°F) or above 95% RH may temporarily increase the maximum RH sensor error by an additional 1%
    Accuracy±2.5% from 10% to 90% (typical) to a maximum of ±3.5% including hysteresis at 25°C (77°F); below 10% RH and above 90% RH ±5% typical
    Resolution0.01%
    Drift<1% per year typical
    Response Time (typical, to 90% of change)
    TemperatureWithout Solar Radiation ShieldWith RS1/M-RSA Solar Radiation ShieldWith RS3-B Solar Radiation Shield
    MX2302A
    external sensor
    3 minutes, 45 seconds in air moving 1 m/sec7 minutes, 45 seconds in air moving 1 m/sec6 minutes, 30 seconds in air moving 1 m/sec
    RHWithout Solar Radiation ShieldWith RS1/M-RSA Solar Radiation ShieldWith RS3-B Solar Radiation Shield
    MX2302A
    external sensor
    15 seconds in air moving 1 m/sec30 seconds in air moving 1 m/sec30 seconds in air moving 1 m/sec
    Logger
    Operating Range-40° to 70°C (-40° to 158°F)
    Radio Power1 mW (0 dBm)
    Transmission RangeApproximately 30.5 m (100 ft) line-of-sight
    Wireless Data StandardBluetooth Low Energy (Bluetooth Smart)
    Logging Rate1 second to 18 hours
    Logging ModesFixed interval (normal, statistics) or burst
    Memory ModesWrap when full or stop when full
    Start ModesImmediate, push button, date & time, or next interval
    Stop ModesWhen memory full, push button, date & time, or after a set logging period
    Time Accuracy±1 minute per month 0° to 50°C (32° to 122°F)
    Battery Type2/3 AA 3.6 Volt lithium, user replaceable
    Battery Life2 years, typical with logging interval of 1 minute and Bluetooth Always On enabled; 5 years, typical with logging interval of 1 minute and Bluetooth Always On disabled. Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life.
    MemoryMX2302A: 128 KB (63,488 measurements, maximum)
    Full Memory Download TimeApproximately 60 seconds; may take longer the further the device is from the logger
    Dimensions MX23xx-modelsLogger housing: 10.8 x 5.08 x 2.24 cm (4.25 x 2.0 x 0.88 in.)
    External temperature sensor diameter: 0.53 cm (0.21 in.)
    External temperature/RH sensor diameter: 1.17 cm (0.46 in.)
    External sensor cable length: 2 m (6.56 ft)
    Solar radiation shield bracket: 10.8 x 8.3 cm (4.25 X 3.25 in.)
    WeightLogger: 75.5 g (2.66 oz)
    Solar radiation shield bracket: 20.4 g (0.72 oz)
    MaterialsAcetal, silicone gasket, stainless steel screws
    Environmental RatingNEMA 6 and IP67

    Specificaties

    Artikelnummer
    MX2302A
