      Ultrasonic Mic Board with Header Pins
      Ultrasonic Mic Board with Header Pins
      Ultrasonic Mic Board with Header Pins
      Ultrasonic Mic Board with Header Pins
      Ultrasonic Mic Board with Header Pins
      Ultrasonic Mic Board with Header Pins
      Ultrasonic Mic Board with Header Pins
      Ultrasonic Mic Board with Header Pins
      Ultrasonic Mic Board with Header Pins
      Ultrasonic Mic Board with Header Pins

      Productomschrijving

      Ultrasonic Mic Board with Header Pins is identical to the Ultrasonic Mic Board, except that it has Header Pins.

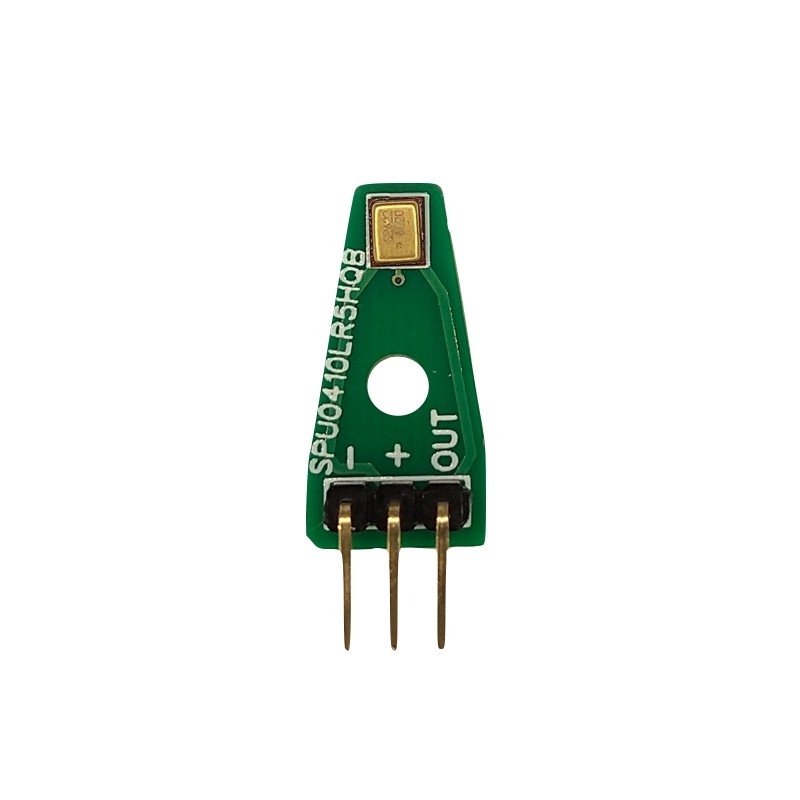

      • Knowles Ultrasonic MEMS Omnidirectional mic SPU0410LR5H-QB mounted on a small PCB for easy connections
      • Good usable ultrasonic response up to 80 kHz
      • 3 wire connection
        20Hz to 10kHz +/- 2 dB
        10kHz to 80kHz +/- 10 dB

      Ultrasonic Mic Board for development and testing
      M3 central mounting hole

      Terminals 0.1" pitch:
      + Supply Voltage 1.5-3.6 volts
      - Ground
      OUT signal output

      Absolute maximum voltage 5 volts.

      Data Sheet

      Tags:audio (144)microfoon (76)microphone (87)Mikrofon (71)Ultrasonic (18)

      Specificaties

      Artikelnummer
      FC175
