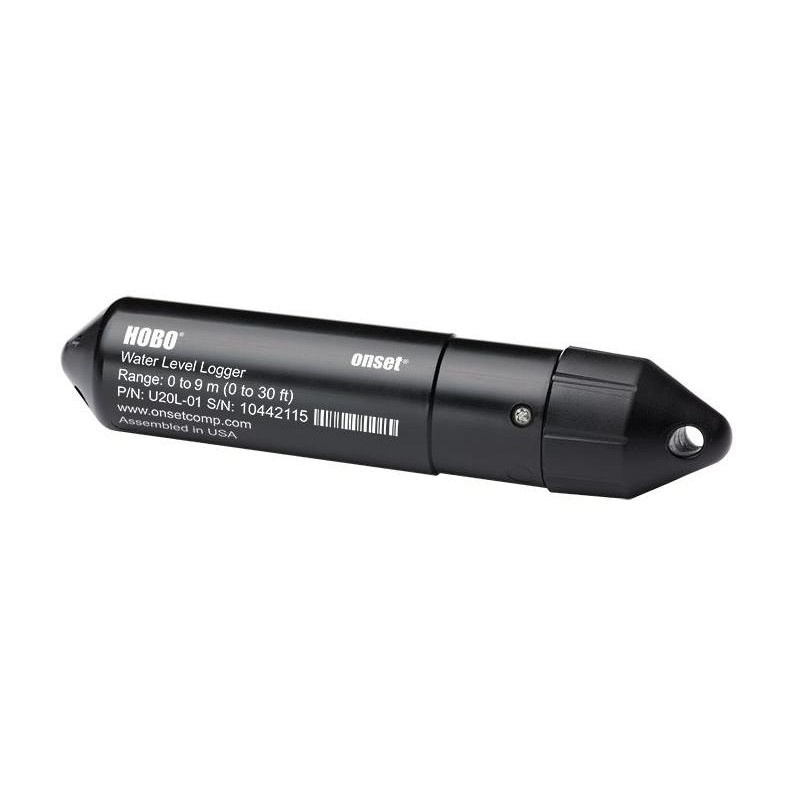

HOBO Wasserstand Datenlogger (0-9 m) U20L-01

€609,84
  • Inklusive 21% MwSt.: €609,84
  • Ohne MwSt: €504,-
0 Auf Lager: 3-6 Wochen
The HOBO U20L-01 is a low-cost, research-grade water level data logger for continuously measuring water level and temperature in a wide range of underwater environments.... Mehr anzeigen
  • Versandkosten nur 7,50 € nach Deutschland
  • An Werktagen vor 17 Uhr bestellt? Versand am selben Tag!
  • 14 Tage Rückgaberecht
  • Bei uns ist nichts unmöglich!

Produktbeschreibung

The HOBO U20L-01 is a low-cost, research-grade water level data logger for continuously measuring water level and temperature in a wide range of underwater environments. It features 0.1% measurement accuracy, a polypropylene housing for use in both fresh and salt water, and a non-vented design for convenient and hassle-free deployment.

This data logger requires either the U-DTW-1 Waterproof Shuttle or the Base-U-4 Base Station for configuration and data offload, HOBOware software (free download). NOTE: HOBOware Pro is required when using the U-DTW-1 Waterproof Shuttle. See compatible items below.

  • Self-contained non-vented design enables easy deployment
  • Ideal for use in both fresh and saltwater environments, including wells, streams, lakes, wetlands, and tidal areas
  • Depths up to 30 feet
  • Durable ceramic pressure sensor withstands freezing
  • HOBOware Pro software provides easy conversion to accurate water level reading, fully compensated for barometric pressure, temperature, and water density



Specifications

Pressure (Absolute) and Water Level Measurements U20L-01
Operation Range0 to 207 kPa (0 to 30 psia); approximately 0 to 9 m (0 to 30 ft) of water depth at sea level, or 0 to 12 m (0 to 40 ft) of water at 3,000 m (10,000 ft) of altitude
Factory Calibrated Range69 to 207 kPa (10 to 30 psia), 0° to 40°C (32° to 104°F)
Burst Pressure310 kPa (45 psia) or 18 m (60 ft) depth
Water Level Accuracy*Typical error: ±0.1% FS, 1.0 cm (0.03 ft) water
Maximum error: ±0.2% FS, 2.0 cm (0.06 ft) water
Raw Pressure Accuracy**±0.3% FS, 0.62 kPa (0.09 psi) maximum error
Resolution<0.02 kPa (0.003 psi), 0.21 cm (0.007 ft) water
Pressure Response Time (90%)***<1 second at a stable temperature; measurement accuracy also depends on temperature response time
Temperature Measurements
Operation Range-20° to 50°C (-4° to 122°F)
Accuracy±0.44°C from 0° to 50°C (±0.79°F from 32° to 122°F), see Plot A in manual
Resolution0.10°C at 25°C (0.18°F at 77°F), see Plot A in manual
Response Time (90%)10 minutes in water (typical)
Stability (Drift)0.1°C (0.18°F) per year
Logger
Real-time Clock±1 minute per month 0° to 50°C (32° to 122°F)
Battery2/3 AA, 3.6 Volt lithium, factory-replaceable
Battery Life (Typical Use)5 years with 1 minute or greater logging interval
Memory (Non-volatile)64K bytes memory (approx. 21,700 pressure and temperature samples)
WeightApproximately 154 g (5.43 oz) in air Approximately 53.9 g (1.9 oz) in fresh water
Dimensions3.18 cm (1.25 inches) diameter, 15.24 cm (6.0 inches) length; mounting hole 6.3 mm (0.25 inches) diameter
Wetted MaterialsPolypropylene housing and lanyard; Viton and Buna-N O-rings; ceramic sensor in acetyl end cap; stainless steel screws suitable for saltwater
Logging IntervalFixed-rate or multiple logging intervals, with up to 8 user-defined logging intervals and durations; logging intervals from 1 second to 18 hours. Refer to the HOBOware User’s Guide for details.
Launch ModesImmediate start and delayed start
Offload ModesOffload while logging; stop and offload
Battery IndicationBattery voltage can be viewed in status screen and optionally logged in datafile. Low battery indication in datafile.
Environmental Rating:IP68
