    Euromex MicroBlue Monoculaire Microscoop with built-in 5 MP camera

    €633,50
    • Including 21% Tax: €633,50
    • Excluding VAT: €523,55
    0 In stock: 4-10 business days

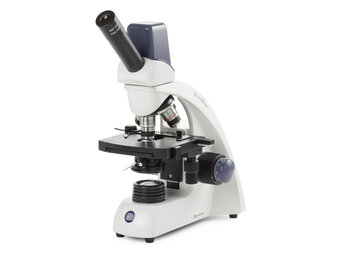

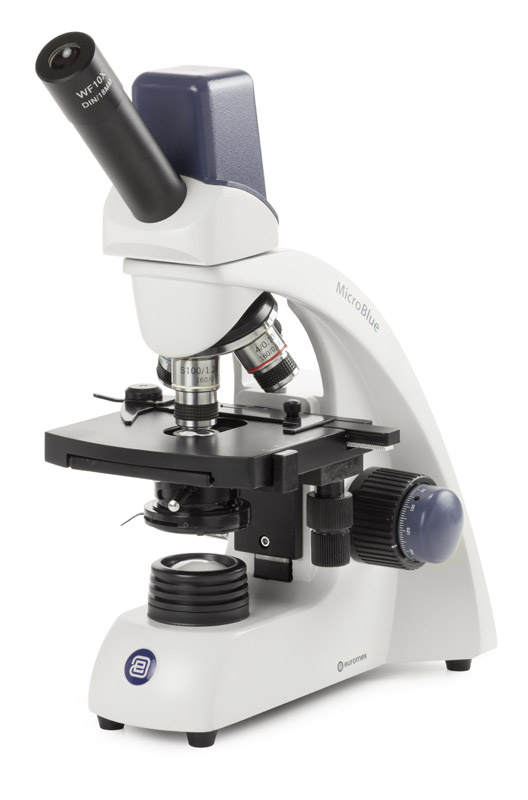

    Euromex MicroBlue monocular microscope with built-in 5 MP digital CMOS camera. With
    achromatic 4/10/S40/S100x oil DIN 35 mm objectives, mechanical stage, 1 W LED
    illumination.... Show more
    • Free shipping in the Netherlands from € 35, -
    • Ordered before 5 p.m. on working days? Shipped the same day!
    • 14-day money back guarantee
    • We are happy to think along!

    Product description

    EYEPIECE Euromex MicroBlue Monoculaire Microscoop with built-in 5 MP camera

    • Wide field WF 10x/18 mm eyepiece(s)
    • Secured and with pointer

    HEAD

    • with 45° inclined tube
    • 360° rotatable and secured

    NOSEPIECE

    • Revolving nosepiece for four reversed objectives

    OBJECTIVES 35 MM PARFOCAL

    • Achromatic 4x/0.10, 10x/0.25, S40x/0.65 and S100x oil immersion
    • The S40x and S100x oil immersion objectives are spring loaded

    FOCUSING Euromex MicroBlue Monoculaire Microscoop with built-in 5 MP camera

    • Coaxial coarse and fine adjustments, 200 graduations, 15 µm per graduation, 3 mm per rotation, total travel approximately 15 mm
    • Supplied with an adjustable rack stop to prevent damage to sample and objectives

    STAGE

    • Supplied with 115 x 100 mm stage with integrated 55 x 20 mm X-Y mechanical stage.

    CONDENSER

    • Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder.

    ILLUMINATION

    • Supplied with an adjustable 1W LED illumination
    • Supplied with rechargeable batteries and with an external 100-240 V battery charger/mains adapter

    ANTI-THEFT SLOT
    At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft

    PACKAGE CONTENT Euromex MicroBlue Monoculaire Microscoop with built-in 5 MP camera

    • With mains adapter-charger, three rechargeable AA batteries, white filter, dust cover, user manual and 5 ml immersion oil
    • Software included for digital models
    • USB-2 cable and a micrometer 1mm/100 slide are included
    • All packed in a polystyrene box

    5.0 MP CAMERA

    • Equipped with a 5.0 MP CMOS USB-2 camera
    • Maximum resolution 2560 x 1920, 24 bits color depth, up to 10 frames per second
    • Delivered with ImageFocus 4 software
    • Warranty for the camera is two years

    SOFTWARE

    • The ImageFocus 4 software allows to save images in .jpg, .tif, .bmp or .dicom formats as well as .avi format videos
    • Measurements can be done on still and live image
    • Compatible with Windows 10 and higher, both 32 and 64 bits configurations
    • Mac OS-Light version is also available for capturing images
    • Free updates can be downloaded on www.euromex.com

    See the Euromex Academy for a manual.

    Specifications

    Article number
    MB.1155-5
