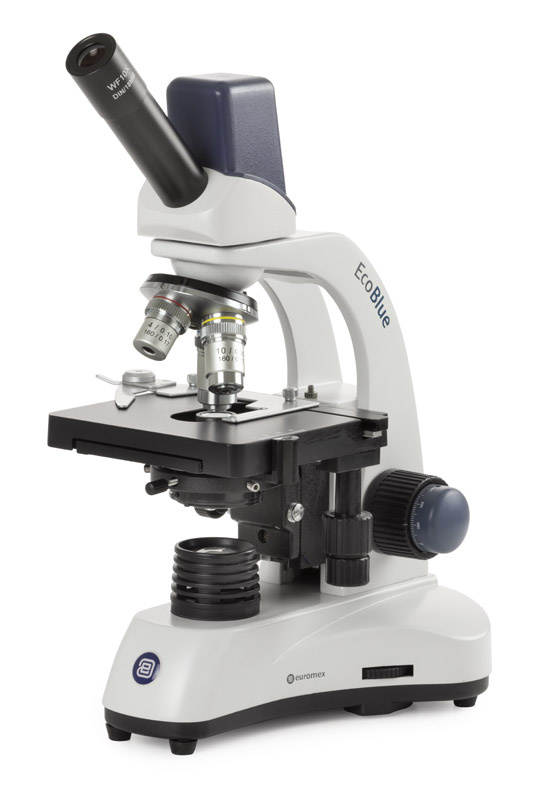

Euromex EcoBlue Monocular Microscope with built-in 5 MP camera 40x/100x/400x

Name: Euromex Euromex EcoBlue Monocular Microscope with built-in 5 MP camera 40x/100x/400x
Brand: Euromex
SKU: Nederland
Price: 693.00 EUR
Availability: InStock

Everything about Microscopes

Brand: Euromex

€693,- 1 In stock: Ordered on working days before 17:00, shipped the same day.

The Euromex EcoBlue Monocular Microscope with built-in 5 MP camera is ideal for education and offers excellent value for money.... Show more

Free shipping in the Netherlands from €50,-*
Ordered before 5 p.m. on working days? Shipped the same day!
14-day money back guarantee
We are happy to think along!

Product description

The modern microscopes of the EcoBlue series, including the Euromex EcoBlue Monocular Microscope with built-in 5 MP camera 40x/100x/400x, have been specially developed for education and the focus is on ergonomics and the excellent price/quality ratio.

EYEPIECE

Wide field WF 10x/18 mm eyepiece with pointer.

HEAD

With 45° inclined tubes
The interpupillary distance is adjustable between 48 and 75 mm
Head is 360° rotatable
Models with an integrated USB-2 camera are supplied with a 5.0 MP 1/2” CMOS sensor with 2560 x 1920 pixels resolution
The EcoBlue can also be supplied with a discussion head

NOSEPIECE

Revolving nosepiece for four objectives on ball bearings

OBJECTIVES - 45 MM PARFOCAL

Achromatic 4x, 10 and S40x objectives, magnification 40, 100 and 400x
The S40x objective is spring loaded
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

FOCUSING

Coaxial coarse and fine adjustments, 200 graduations, 12.5 µm per graduation, 2.5 mm per rotation, total travel approximately 15 mm
Supplied with an adjustable rack stop to prevent damage to sample and objective

STAGES

Plain 123 x 128 mm stage with integrated 70 x 27 mm X-Y mechanical stage

CONDENSER

Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

ILLUMINATION

With an adjustable 1 W NeoLED™ illumination system
supplied with integrated power supply and 3 recheargable batteries

ANTI-THEFT SLOT

At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft

CAMERA

With a 5.0 MP CMOS USB-2 camera
Maximum resolution 2560 x 1920, 24 bits color depth, up to 30 frames per second
Delivered with the ImageFocus Plus software, USB-2 cable and a micrometer 1mm/100 slide
Warranty for the camera is 2 years

SOFTWARE

Delivered with ImageFocus Plus for capturing of images and videos
The capture and analysis ImageFocus Plus software allows to save images in .jpg, .tif, .bmp or .dicom formats and videos in .avi format
Images can be annotated and measurements can be performed on live or captured images
Compatible with Windows 7, 8 and 10, both 32 and 64 bits configurations
A Mac OS version is also available
Free updates can be downloaded from www.euromex.com

PACKAGING Euromex EcoBlue Monocular Microscope with built-in 5 MP camera 40x/100x/400x
