Key Features AmScope Full HD 7" Digital Compound Microscope
- Built-in Full HD monitor that displays crisp 1080p images and video and easily operated by the controls on the microscope.
- Use the default monitor or plug the included HDMI cable into a TV or monitor for a larger display.
- Comes standard with a 3-axis mechanical stage with low-position controls, metal caliper, and coarse focus.
- Switch between incident and transmitted illumination depending on the specimen type.
- Is battery-powered and rechargeable, making it portable and shareable. Great for classrooms where power outlets are limited.

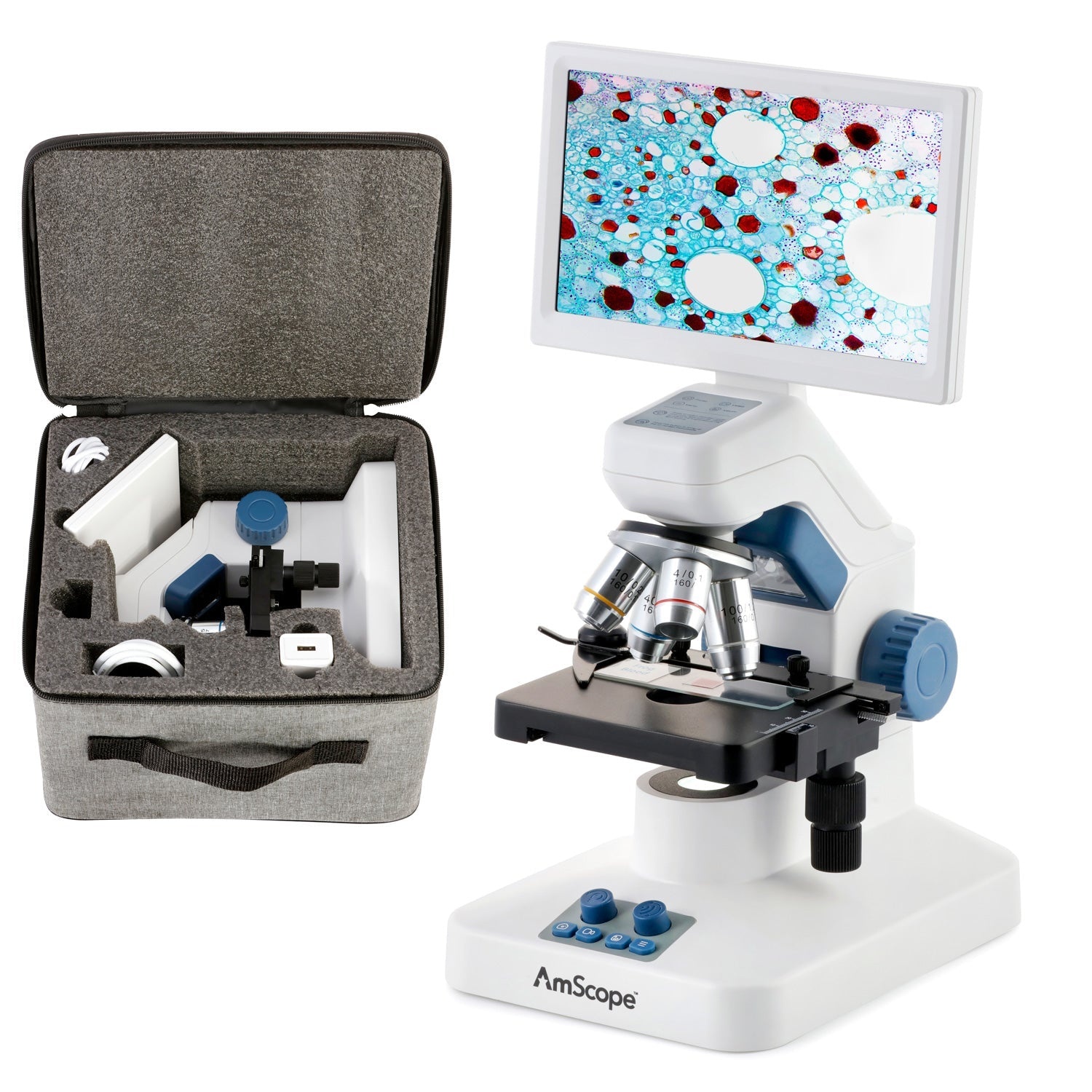

AmScope Full HD 7" Digital Compound Microscope combines zoom optics, dual illumination, digital recording, four objectives (4X, 10X, 40X, 100X), a mechanical stage, and a 7” screen to create a an all-in-one system. Designed for use in laboratories and classrooms, this all-in-one instrument provides the tools needed to efficiently view, record, and analyze. The ability to capture photos and videos, and perform calibrated on-screen measurements will be especially useful for studying fixed or live cells, bacteria, plants and soil, or water samples.
Zoom Optics
Allows users to further hone in on the specimen by utilizing the digital zoom which can be increased or decreased by rotating the Right knob on the control panel up to a maximum of 20X.

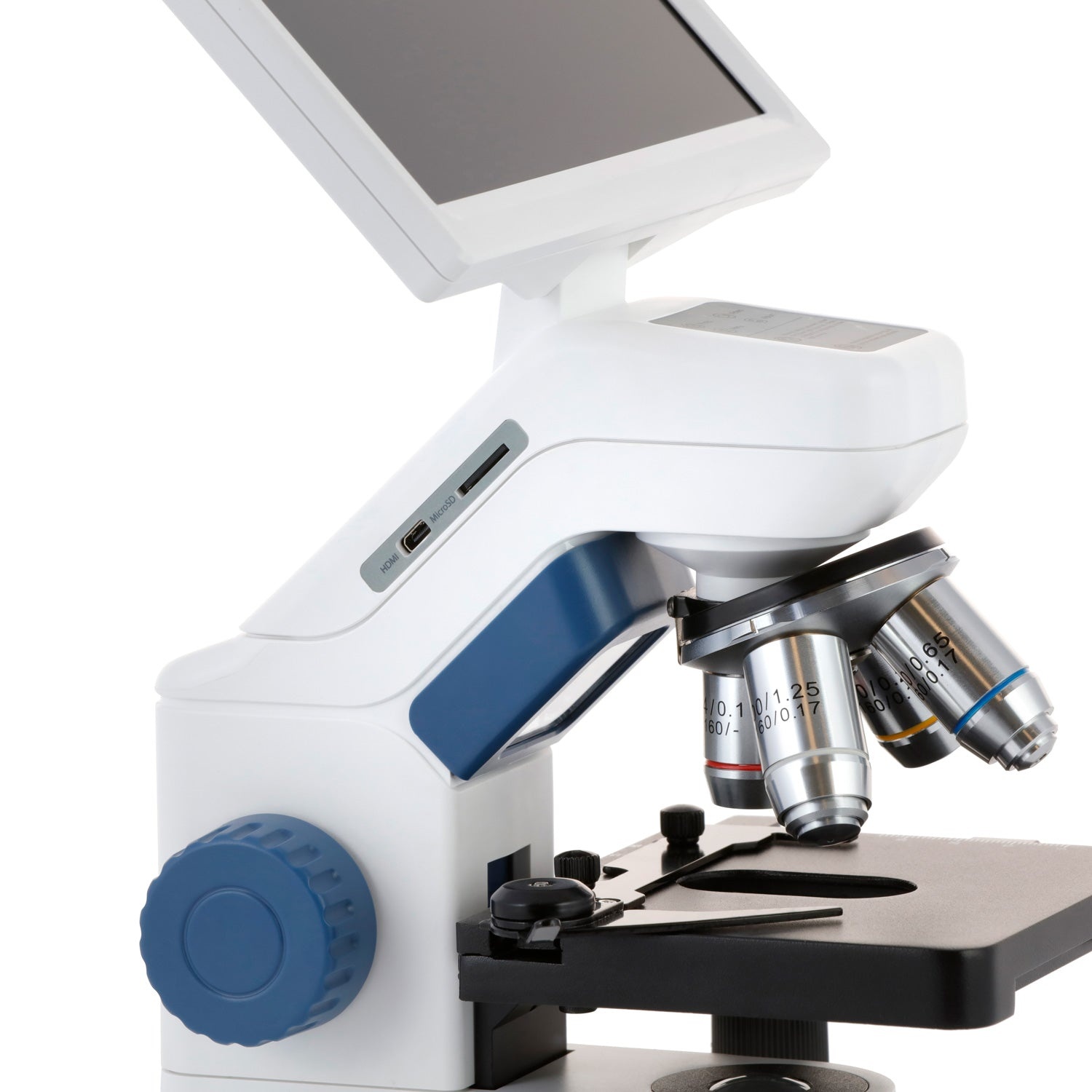

Digital Imaging
The built-in camera and 7” screen bring images to life with clarity and precision. Use the included controls to capture photos and video along with a variety of enhancement features such as exposure, brightness, and contrast. Save images and video directly to the included 32gb MicroSD card for storage and transfer to PC or MAC. You can also utilize the HDMI cable to connect to and display on a larger screen such as a TV or monitor. The screen can be folded down for easy transportation and storage.

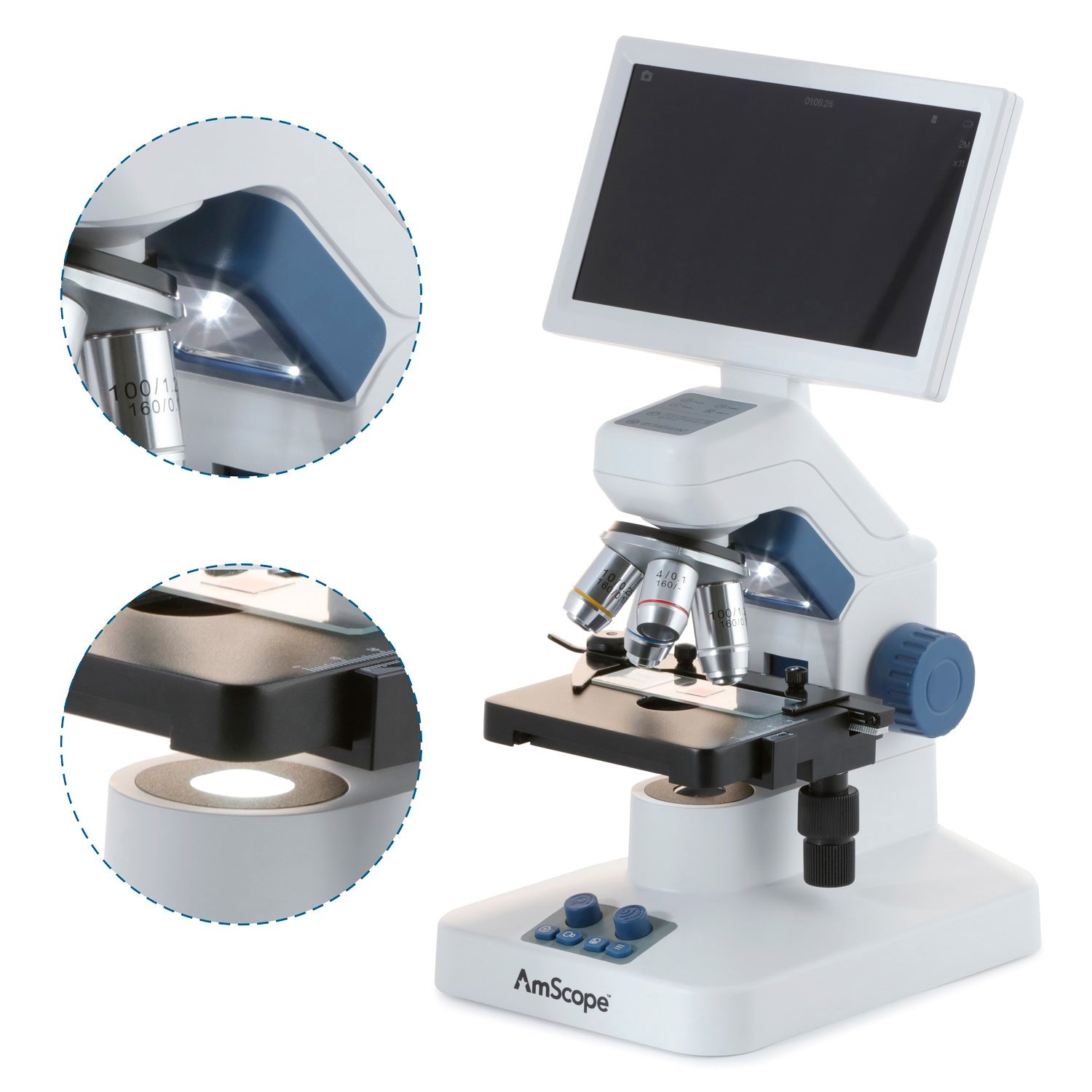

Ergonomics and Illumination
The microscope is pre-mounted to a tabletop stand with rack-and-pinion focus, and dual illumination. Focus is controlled by symmetrical knobs located on either side of the track-style column. The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides.

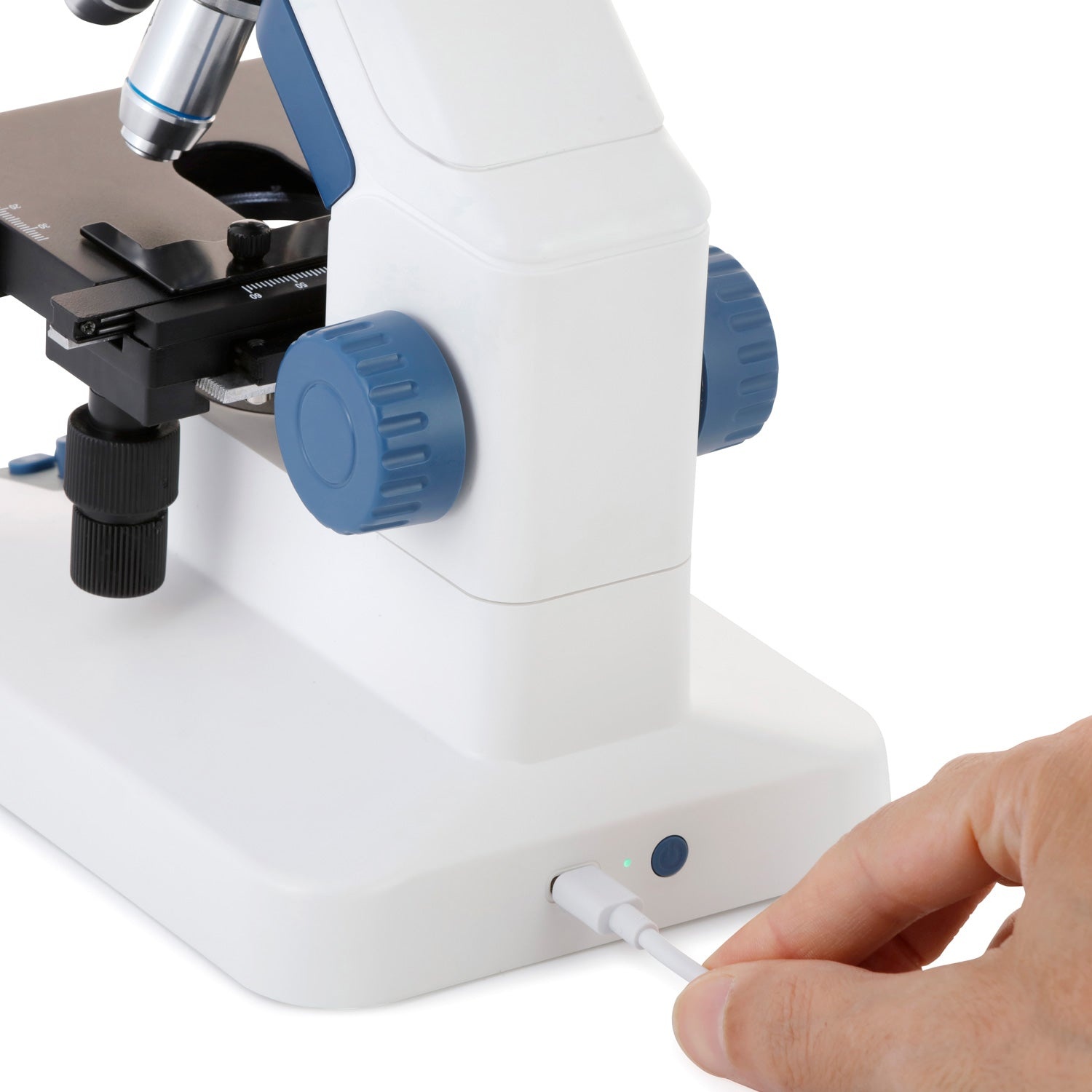

Rechargeable and Portable
This microscope includes a battery that allows for portable use and can be operated while recharging using the included USB-C cable.
Specifications AmScope Full HD 7" Digital Compound Microscope
Lens
Optical System: Finite-conjugate
Objective: Turret Quadruple
Camera
Sensor Type: CMOS
Sensor Optical Format: 1/2.8"
Active Recording Pixels: 2MP
Pixel Size: 2.0 x 2.0µm
Digital Zoom: Up to 20X
Monitor
Display Size: 7"
Native Resolution: 1920 x 1080
Illuminator
Illuminator Type: Variable-intensity LED, Top 0.06W, Bottom 0.75W
General
Power Requirements: 5V/2A, 100-240VAC 50/60Hz wide-band
Battery: Rechargeable Li-Ion 18650, 3.7V/2000MAH
For a manual, see here.
