Euromex BlueScope Trinocular Microscope 40x/100x/400x/1000x

Name: Euromex Euromex BlueScope Trinocular Microscope 40x/100x/400x/1000x
Brand: Euromex
SKU: Nederland
Price: 701.00 USD
Availability: InStock

Everything about Microscopes

Brand: Euromex

$803.67 0 In stock: 3-6 Weeks

The BlueScope microscope series is specifically designed for educational and professional applications, with a strong focus on durability, safety, and ease of use, while maintaining the highest quality standards.... Show more

Gratis verzending in Nederland vanaf €50,-*
Ordered before 5 p.m. on working days? Shipped the same day!
14-day money back guarantee
We are happy to think along!

Product description

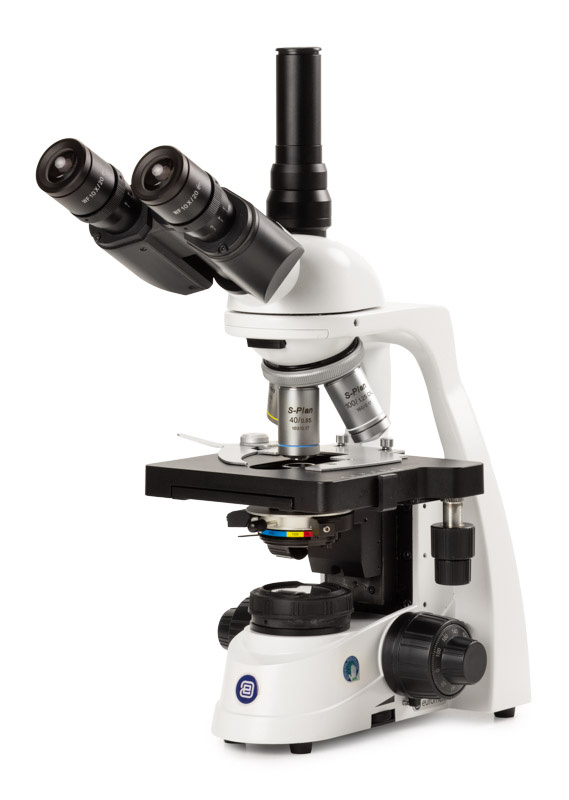

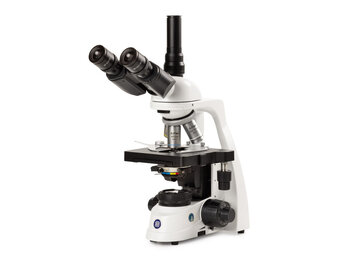

The Euromex BlueScope Trinocular Microscope 40x/100x/400x/1000x is designed for education, universities, and small laboratories. Durability and safety are paramount, while maintaining the highest quality standards. The Euromex BlueScope Trinocular Microscope 40x/100x/400x/1000x is equipped with a rotating head adjustable to two heights and a rackless stage for safety and ergonomics.

A color-coded condenser, a quick-focus aid, and an accessory storage compartment make this microscope ideal for students and, above all, user-friendly.

Technical specifications Euromex BlueScope Trinocular Microscope 40x/100x/400x/1000x

Eyepiece

Wide field WF 10x/20 mm secured eyepieces

Head

With 30° inclined tubes, interpupillary distance is adjustable between 48 and 75 mm and equipped with a ± 5 diopter adjustment on the left tube
Head is 360° rotatable.
The trinocular head has a fixed light path beam splitter (50:50) and generates an erect image
The BlueScope can also be supplied with a discussion head

Nosepiece

Reversed quadruple nosepiece on ball bearings

Objectives - 45 mm parfocal

Supplied with Semi Plan 4x/0.10, 10x/0.25, S40x/0.65 and S100x oil immersion objectives
The S40x and S100x oil immersion objectives are spring loaded
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

Focusing

Coaxial coarse and fine adjustments with 100 graduations
Precision 2 μm per graduation, 0.2 mm per rotation
Total travel range is approximately 10 mm
Supplied with an adjustable rack stop to prevent damage to sample and objectives
Improved coarse & fine adjustment, which is equipped with tension control
With quick focusing aid for finding the slides focusing region with ease

Stage

Rackless 140 x 135 mm stage with mechanical 70 x 50 mm X-Y translation stage

Condenser

Color coded, height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

Köhler illumination

Köhler illumination ensures the highest possible contrast and the maximum achievable resolving power. It generates a uniform illumination of the sample and eliminates all interference from dust on lenses and side glare of the light source

Dual illumination system

White LED: 6000 – 6500 K white 3 W LED™.Ideal for standard observations with crisp, cool lighting
Halogen colored LED: 3000 – 3200 K 3 W NeoLED™. Enhances contrast for specific applications such as transparent objects

Quick focus aid

The BlueScope is equipped with a quick focus aid

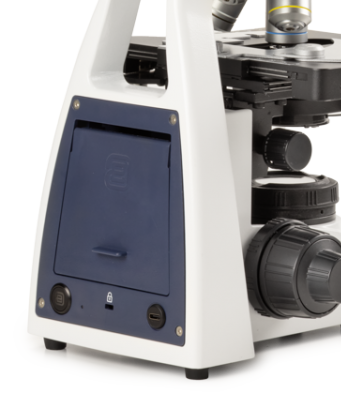

Anti-theft slot

At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft

Package content Euromex BlueScope Trinocular Microscope 40x/100x/400x/1000x

Supplied with blue filter, Allen key, 5 ml immersion oil, 100-240 Vac / 5 Vdc USB multi-plug power adapter, 3 rechargeable type AA batteries, manual and dust cover
