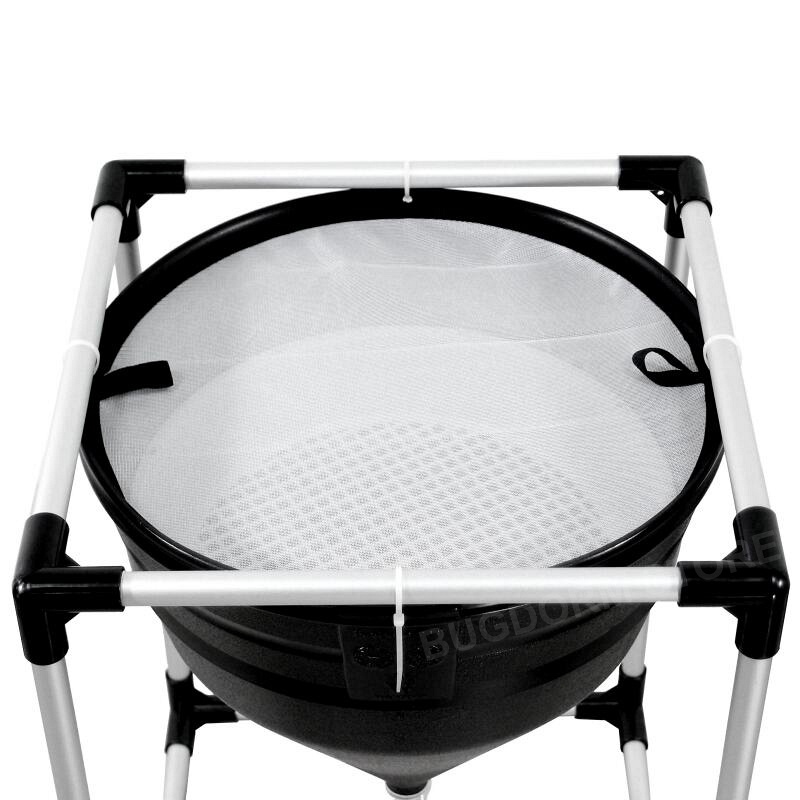

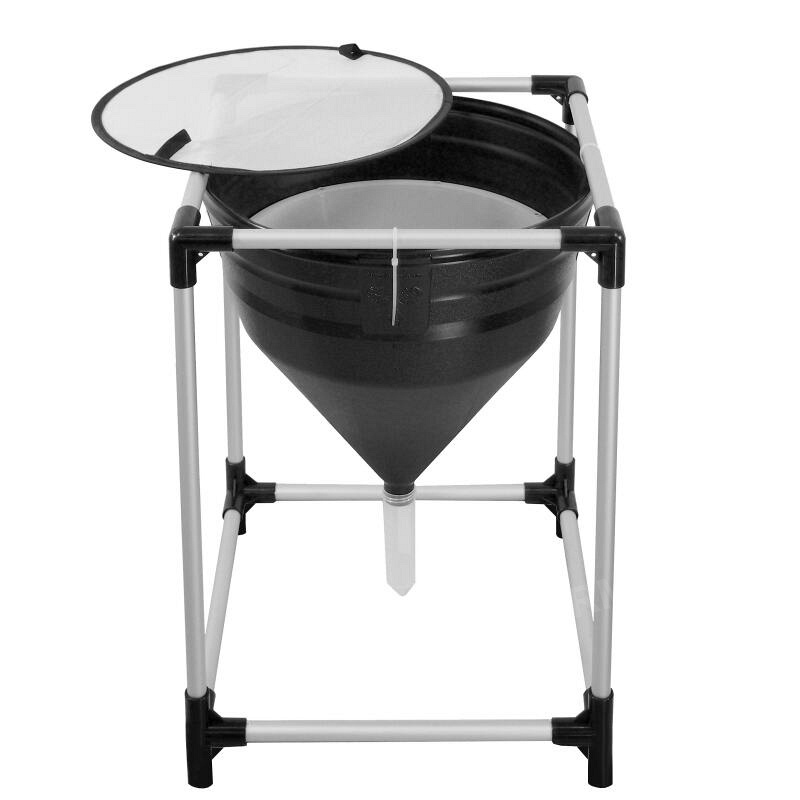

Housed in an aluminum framework, the Bugdorm Berlese Funnel is lightweight (1.55 kilos including the aluminum frame) and easy to install (L36.5 x W36.5 x H52 cm after assembly). All parts are detachable and stackable. These funnels are very suitable for use in the wilderness and laboratories where there is no access to electricity.

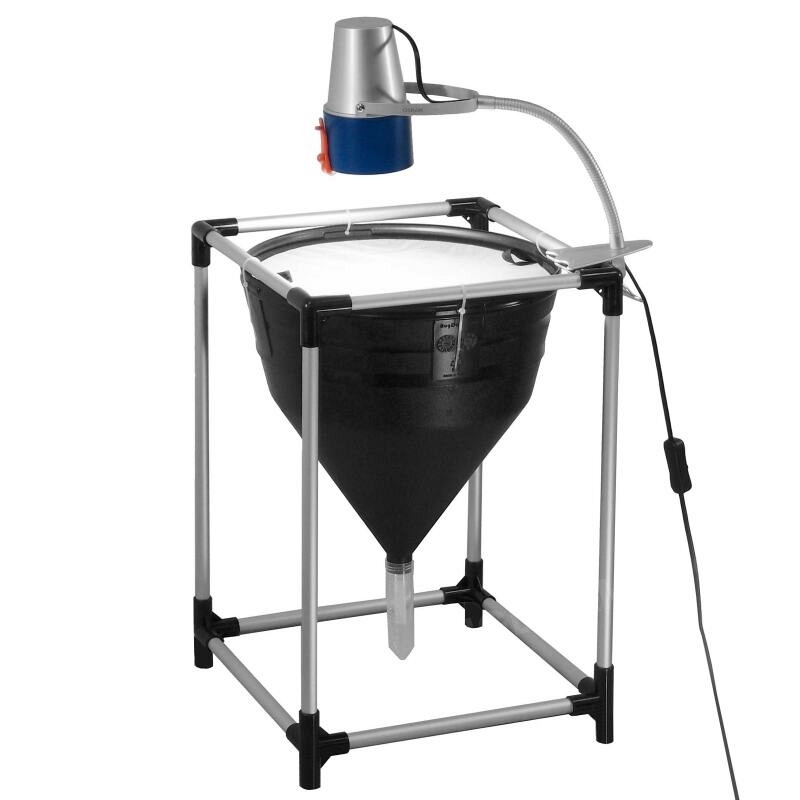

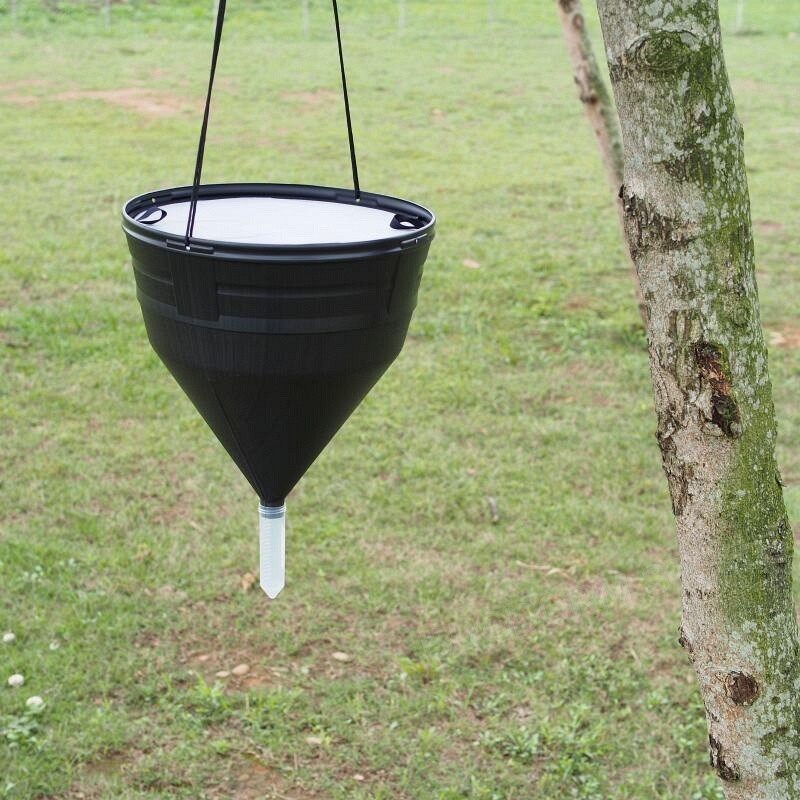

The Bugdorm Berlese Funnel is designed so that it can be hung by strings (NOT included). To accelerate extraction of soil organisms, external heat sources (NOT included) can be easily attached to the aluminum frame.

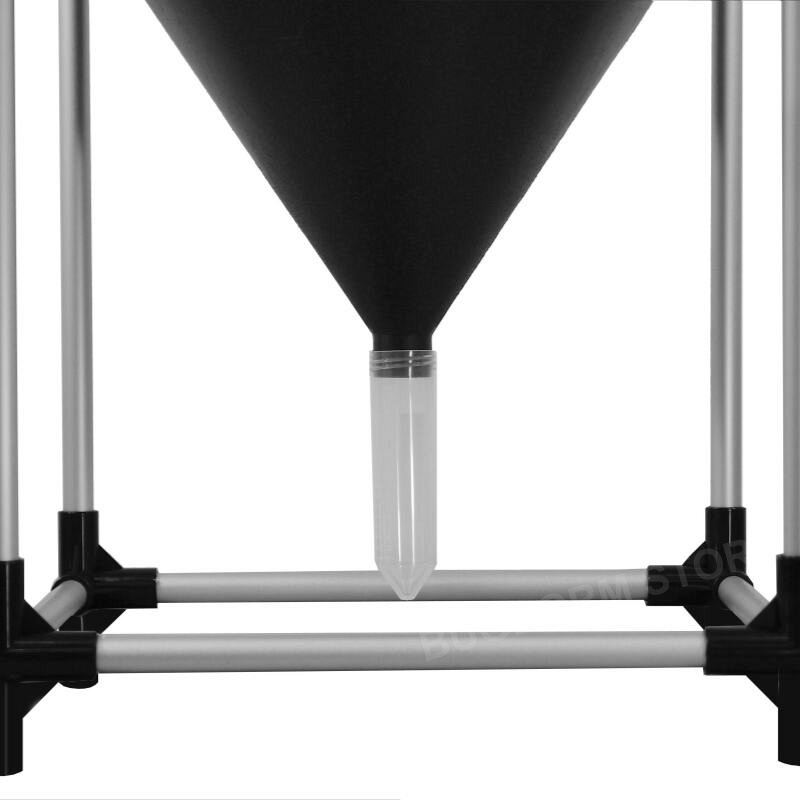

Because the funnel (34-cm diameters, 35-cm high) is made of PE plastic, it has a very sleek internal surface and cannot be easily deformed. There is no risk of it getting rusty. The Bugdorm Berlese Funnel uses a 50-ml Eppendorf tube as the bottom container for collecting extracted organisms. This Eppendorf tube can be removed and a beaker placed underneath the funnel when large extraction amounts are expected.

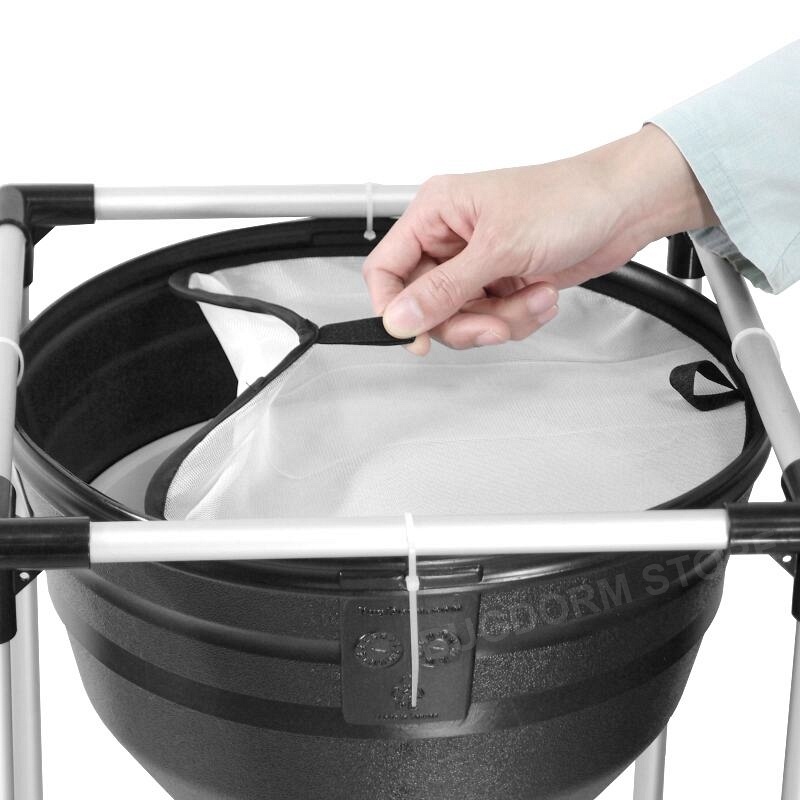

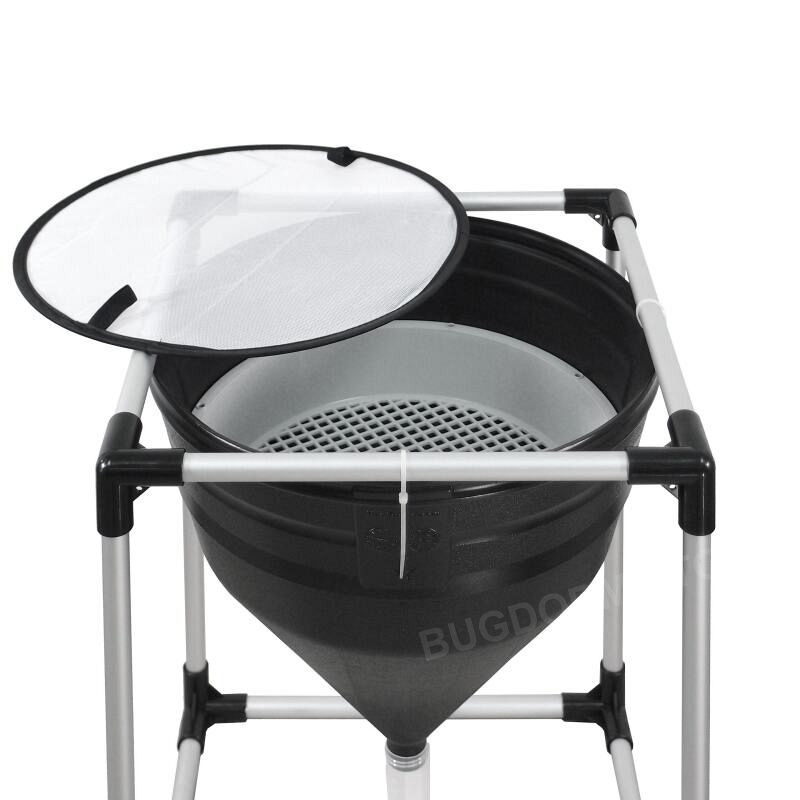

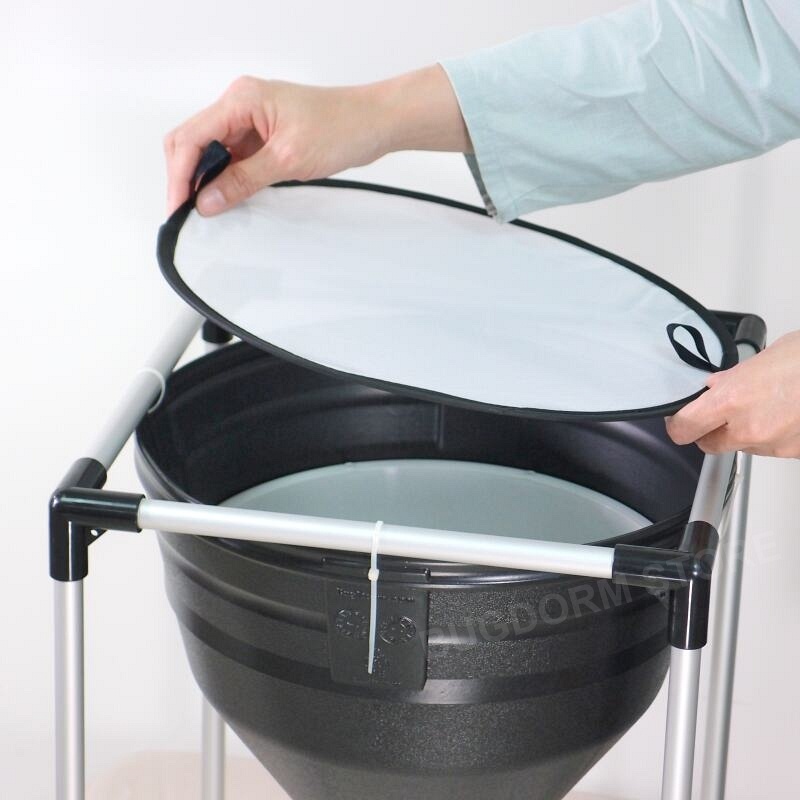

To hold soil or leaf litter samples, this Bugdorm Berlese Funnel uses a 30-cm diameter PP plastic tray with apertures 7-mm in size. Filters of any smaller apertures can be placed on the tray. At the top of the funnel, a removable pop-up mesh lid (33.5-cm diameter) fits perfectly in the rim to stop critters from escaping or entering the soil and leaf litter samples. Because this top cover is of Polyester netting (96 x 26 mesh), there is good ventilation of humidity from the sample to the environment.
Technical Specifiactions Bugdorm Berlese Funnel
- Dimensions: L36.5 x W36.5 x H52 cm | Ø34 cm
- Net Weight: 1550 grams
- Main Materials: Anodized Aluminum Alloy, Polyethylene (PE), Polypropylene (PP)
- Frame: Aluminum Pipes
- Mesh Size: 7 mm Sieve Opening．Top - 96 x 26 | 680 µm Aperture
- Mesh Panel: Top
Contents Bugdorm Berlese Funnel
- Plastic Funnel Body
- Mesh Tray
- Mesh Lid
- Eppendorf Tube (50ml)
- Aluminium Housing
