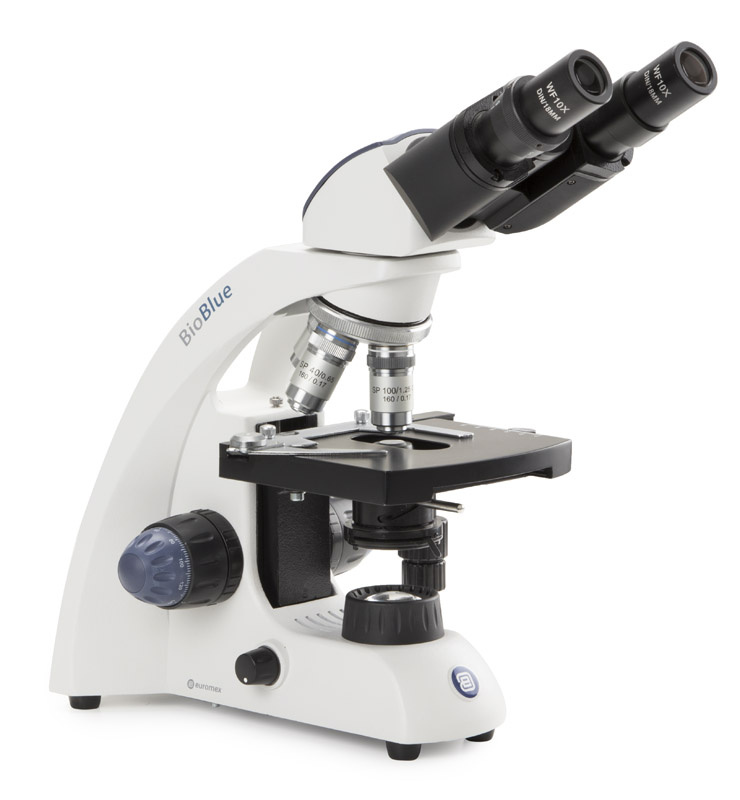

Euromex BioBlue Binocular Microscope SMP 4x/10x/S40x/S100x

Name: Euromex Euromex BioBlue Binocular Microscope SMP 4x/10x/S40x/S100x
Brand: Euromex
Price: 579.00 EUR
Availability: InStock

Everything about Microscopes

Brand: Euromex

€579,- 1 In stock: Ordered on working days before 17:00, shipped the same day.

The modern microscopes of the BioBlue series are especially developed for educational purposes with primary focus on ergonomic and today’s quality standards... Show more

Free shipping in the Netherlands from €50,-*
Ordered before 5 p.m. on working days? Shipped the same day!
14-day money back guarantee
We are happy to think along!

Product description

Thanks to the years of experience of our optical engineers, the Euromex BioBlue Binocular Microscope SMP 4/10/S40/S100x is equipped with high-quality optical components that guarantee a razor-sharp image at any magnification. The modern microscopes in the BioBlue series are specifically designed for educational use, with special attention to ergonomics. They fully comply with current quality standards.

The DIN WF 10x/18 eyepieces and the semi plan achromatic corrected 45 mm DIN objectives of the Euromex BioBlue Binocular Microscope SMP 4/10/S40/S100x generate a crisp high-resolution image. When changing magnification the image remains perfectly in focus and centered. The 120 x 120 mm plain stage and 130 x 130 mm stage with double layered 70 x 28 mm X-Y mechanical stage enable a 2 µm precision positioning of the specimen.

Eyepiece

WF10x/18 mm widefield
Secured and with pointer

Head Euromex BioBlue Binocular Microscope SMP 4/10/S40/S100x

360° rotatable and secured
30° inclined tubes, interpupillary distance is adjustable between 48 and 75 mm and equipped with a ± 5 diopter adjustment on the left tube
Can also be supplied with a discussion head

Nosepiece

Reversed quadruple nosepiece on ball bearings.

45 mm parfocal objectives

Supplied with semi-plan 4x/0.10, 10x/0.25 objectives and S40x/0.65 and S100x/1,25 oil immersion objectives.
The S40x and S100x oil immersion objective has a spring-loaded mount to prevent damage to the specimen and objectives.
All lenses are treated against fungus and have an anti-reflective coating for maximum light output.

Focusing

Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm per graduation, 0.4 mm per rotation
Total travel approximately 23 mm
Supplied with an adjustable rack stop to prevent damage to sample and objectives
The coarse adjustment is equipped with friction control

Stage Euromex BioBlue Binocular Microscope SMP 4/10/S40/S100x

130 x 130 mm stage with 70 x 28 mm X-Y stage

Condenser

Height-adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

Illumination

Intensity adjustable 1 W NeoLED™ illumination system for increased light output
With rechargeable AA batteries and internal 100-250 Vac power supply for wireless operation.

Packaging

Complete with power plug, 3 rechargeable AA batteries, dust cover, spare fuse, white filter, and manual.
Everything is packed in polystyrene packaging.

See the Euromex Academy for a manual for the Euromex BioBlue Binocular Microscope SMP 4/10/S40/S100x.
