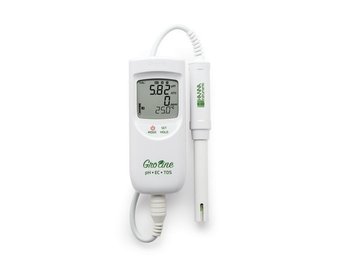

HI9814C GroLine Waterproof Portable pH/EC/TDS Meter

Name: Hanna Instruments HI9814C GroLine Waterproof Portable pH/EC/TDS Meter
Brand: Hanna Instruments
SKU: Nederland
Price: 181.20 GBP
Availability: InStock

Everything about Portable Hand Meters

Brand: Hanna Instruments

£155.77 0 In stock: 2-5 business days

The HI9814 is a lightweight and waterproof portable meter that measures pH, conductivity (EC), total dissolved solids (TDS) and temperature with a single reinforced electrode... Show more

Gratis verzending in Nederland vanaf €50,-*
Ordered before 5 p.m. on working days? Shipped the same day!
14-day money back guarantee
We are happy to think along!

Product description

Designed to bring simplicity to nutrient testing, the HI9814C Portable GroLine Meter is designed specifically for Hydroponic growers. The specialized electrode combines 3 sensors in a single rugged probe featuring a polypropylene body, integrated temperature sensor, and cloth junction.

One combined, pre-amplified pH, EC, and TDS (ppm) probe for hassle-free measurements.
Quick CAL mode for a speedy, single-point calibration for pH and EC with one solution.
Designed for hydroponic, aquaponic, and greenhouse growers.

Specifications HI9814C

pH Range	-2.00 to 16.00 pH
pH Resolution	0.01 pH
pH Accuracy (@25°C/77°F)	±0.02 pH
pH Calibration	Automatic, 1 or 2 point, choose from: 4.01; 7.01; 10.0 pH buffers - one-point calibration using quick calibration solution
mV Range	±825 mV (pH-mV)
mV Resolution	1 mV (pH-mV)
mV Accuracy	±1 mV (pH-mV)
Temperature Range	-5.0 to 105.0 °C / 23.0 to 221.0 °F
Temperature Resolution	0.1 °C / 0.1 °F
Temperature Accuracy (@25°C/77°F)	±0.5 °C / ±1.0 °F
EC Range	0.00 to 6.00 mS/cm (EC) **
EC Resolution	0.01 mS/cm
EC Accuracy (@25°C/77°F)	±2% F.S.
EC Calibration	Automatic, one-point at 1.41 mS/cm or 5.00 mS/cm - one-point calibration using quick calibration solution
TDS Range	0 to 3000 ppm (0.5 CF)/0 to 3990 ppm (0.7 CF)
TDS Resolution	10 ppm (mg/L)
TDS Accuracy (@25°C/77°F)	±2% F.S
TDS Conversion Factor	0.5 (500 ppm) or 0.7 (700 ppm)
Temperature Compensation	pH - Automatic EC - Automatic, with β=1.9%/ °C
Power Supply	1.5V AAA batteries (3 pcs.)
Power Consumption	approx. 600 hours of continuous use
Environment	0 to 50 °C (32 to 122 °F) RH max. 100%
Dimensions	154 x 63 x 30 mm (6.1 x 2.5 x 1.2”)
Weight	196 g (6.91 oz.)
Ordering Information	Supplied with HI1285-7 multiparameter probe, HI50036-0 Quick Cal buffer solution sachet (3), HI700661 pH electrode cleaning solution sachet for agriculture (3), 1.5 AAA batteries (3), and instructions.
Warranty	2 years
Recommended Probe	HI1285-7 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, DIN connector and 1m cable (included)

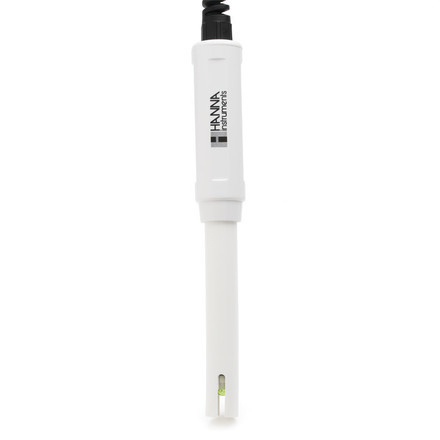

The HI1285-7 is a 3-in-1 pre-amplified multiparameter probe that measures pH, EC/TDS, and temperature within a single polypropylene body. The pH portion of this probe is constructed with a cloth junction, maintenance-free polymer gel electrolyte, and a low-temperature glass sensing bulb. The EC/TDS portion of this probe utilizes two stainless steel pins for an amperometric determination of conductivity and total dissolved solids. A built-in temperature sensor ensures that both pH and EC/TDS readings are compensated for temperature variations in both standards and samples. The design consideration for the HI1285-7 is ideal for measuring the pH, EC/TDS, and temperature in greenhouses, hydroponics, and other agricultural applications. The HI1285-7 is designed for use with Hanna's HI9814 portable multiparameter meter.

Pre-amplified pH Electrode
Amperometric EC/TDS Sensor
1 probe for pH & EC/TDS

Optional HI12943 GroLine pH electrode for HI9814C:

Reference	single, Ag/AgCl
Junction / Flow Rate	ceramic, triple / 40-50 µL/h
Electrolyte	KCl 3.5M + AgCl
Max Pressure	0.1 bar
Range	pH: 0 to 12
Recommended Operating Temperature	-5 to 70°C (23 to 158°F) - LT
Tip / Shape	conic (12 x 12 mm)
Temperature Sensor	yes
Amplifier	yes
Body Material	glass
Cable	7-pole; 1 m (3.3’)
Recommended Use	direct soil, soilless media, soil solution
