The Kowa Digiscoping TSN-PA7A adapter is designed for fast and stable digiscoping with Kowa spotting scopes. Installation takes less than one minute and all camera functions remain fully available. You can quickly switch between photography and normal observation without removing the adapter. The full zoom range of the eyepiece can be used and changing between landscape and portrait orientation is smooth and effortless.
Several adapter options are available for connecting a camera. Choose a TSN-DA adapter if you want to connect the camera directly via the filter thread of the camera lens. This adapter mounts onto the eyepiece. For a more stable connection, the TSN PA adapter is recommended. This version fits completely over the eyepiece and is secured to the body of the spotting scope.
The TSN-PA7A adapter is fully compatible with the Kowa TSN 99, TSN 88, TSN 66, TSN 880 and TSN 770 series when used with a Kowa TE 11WZ or TE 80XW eyepiece. If you use a Kowa TSN 601, TSN 660, TSN 82SV or the TSN 550 series, the TSN PA8 adapter is the correct solution. This adapter also works with the Kowa High Lander and many older Kowa models.
Installation is straightforward. First remove the eyepiece and screw the TSN-PA7A inner ring onto the spotting scope body. Then attach the T2 adapter to the camera, slide the assembly over the eyepiece and secure it using the thumb screws. For some cameras, a specific menu setting may need to be adjusted.

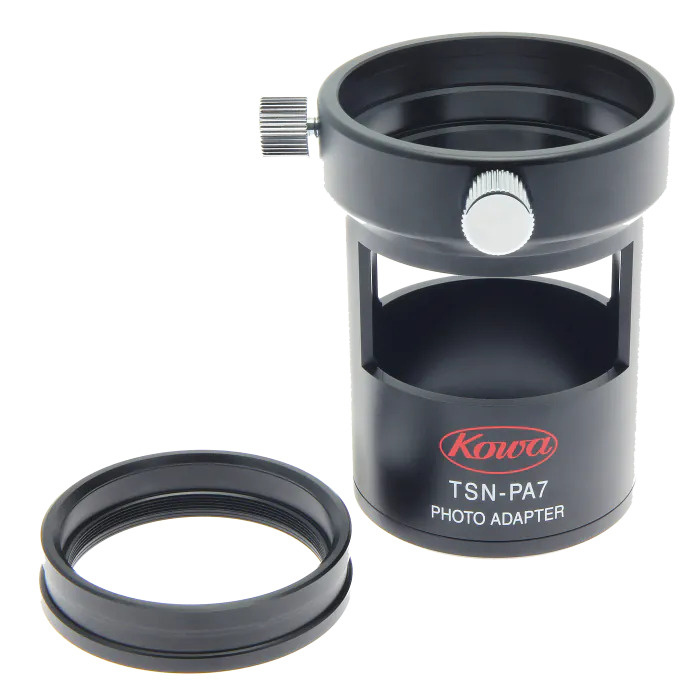

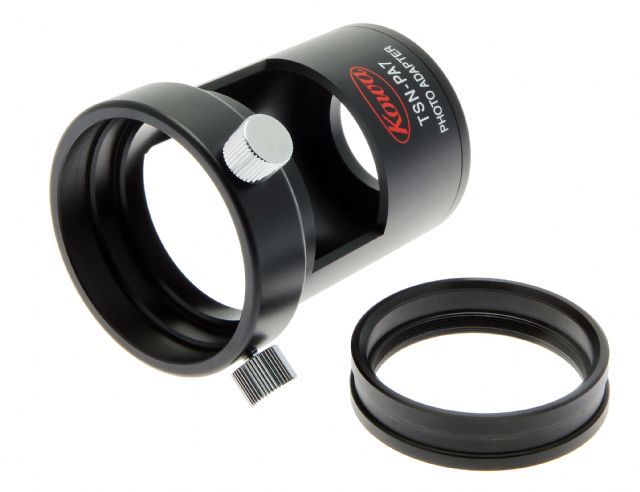

Scope of delivery
- Kowa Digiscoping Adapter TSN-PA7A
- Protective Cap
- Inner Ring
- Manual
