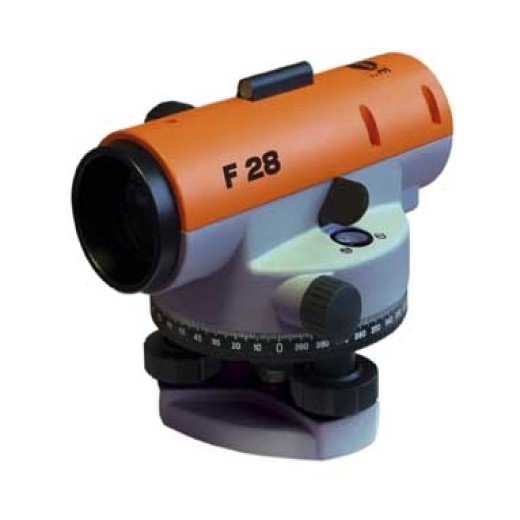

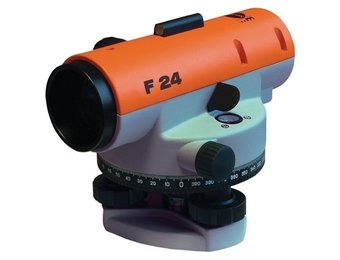

Level Instrument F-series 24/28/32

Name: Veldshop
Address: Leningradweg 14, Groningen, 9723TP, NL
Telephone: 050-2053300
Rating: 9.6

Brand: Nedo

€201,59 0 In stock: 5-10 business days

An excellent level instrument for measuring height differences within a horizontal plane. Indispensable within the archaeological field.... Show more

Model	F24	F28	F32
Image	Upright	Upright	Upright
Magnification	24X	28X	32X
Diameter objective	30 mm	30 mm	40 mm
Shortest distance to target	0,6 m	0,6 m	0,6 m
Multiplication factor	100	100	100
Compensator working area	±15'	±15'	±15'
Setting accuracy	±0,5"	±0,5"	±0,5"
Horizontal edge reading	400 gon	400 gon	400 gon
Sensitivity of the libel	8'/2 mm	8'/2 mm	8'/2 mm
Standard deviation for 1 km double leveling	2,5 mm	±2,0 mm	±1,5 mm
IP-classification	IP 54	IP 54	IP 54
Weight	1,26 kg	1,26 kg	1,26 kg
Threaded connection	5/8"	5/8"	5/8
