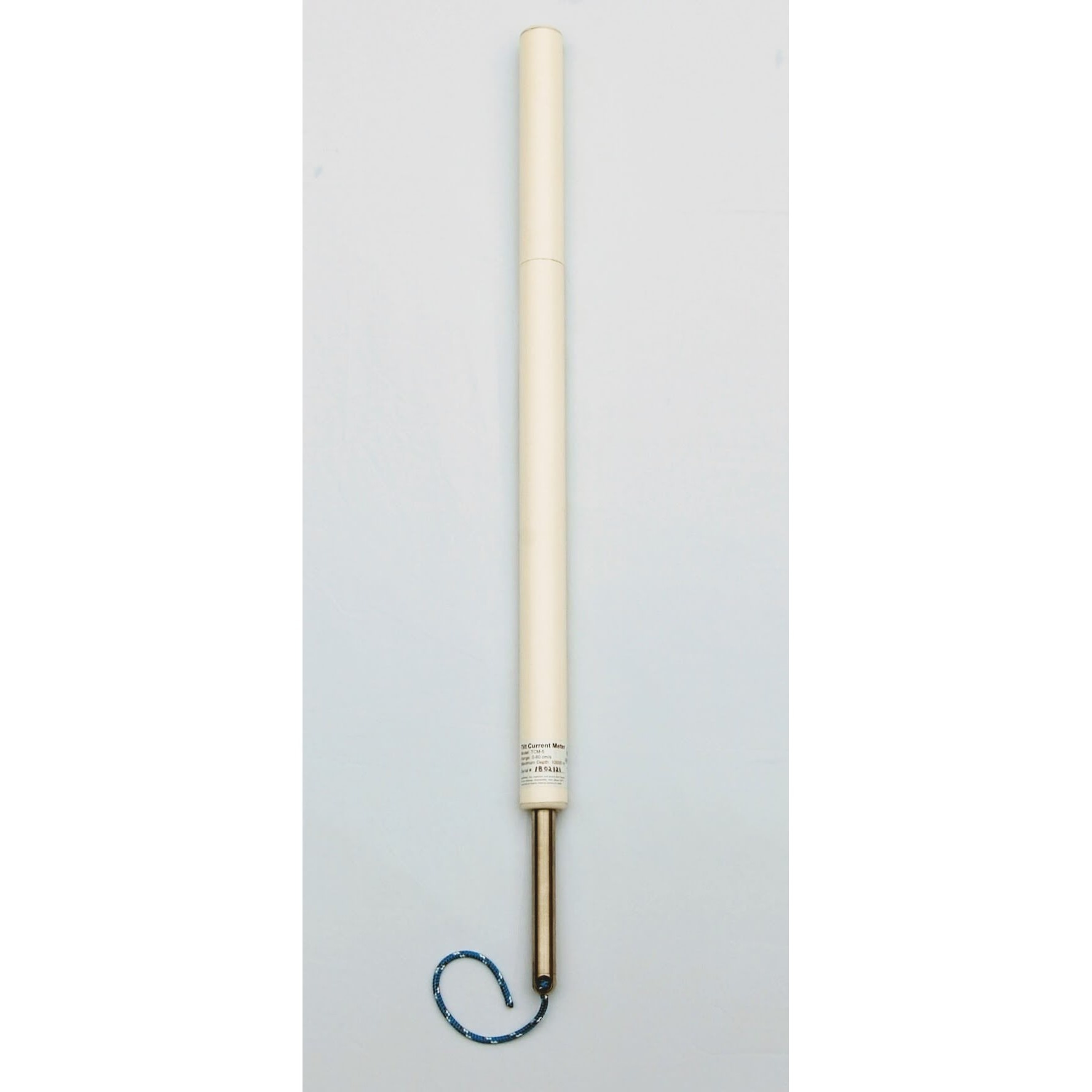

TCM-5 Very Deep Water Tilt Current Meter (10.000 Meters)

Name: Lowell Instruments TCM-5 Very Deep Water Tilt Current Meter (10.000 Meters)
Brand: Lowell Instruments
Price: 6070.36 EUR
Availability: InStock

Everything about Current Measuring Equipment

Brand: Lowell Instruments

€6.070,36 0 In stock: 3-6 Weeks

The TCM-5 is a current meter for use in very deep ocean range in all but the deepest trenches.... Show more

Free shipping in the Netherlands from € 35, -
Ordered before 5 p.m. on working days? Shipped the same day!
14-day money back guarantee
We are happy to think along!

Product description

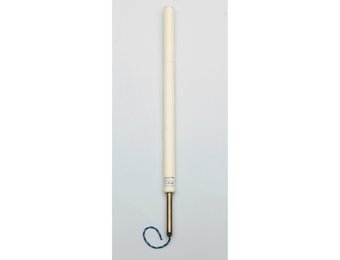

The TCM-5 is a current meter that is designed to operate in the Abyssopelagic and Hadalpelagic Zones to a maximum depth of 10,000 meters. The TCM-5 is constructed from toughened syntactic foam with a titanium pressure housing and is intended to be deployed on benthic landers or by an ROV.

Similar to the other Lowell Instrument's TCMs. The core of the TCM-5 is the MAT-1 Data Logger. The MAT-1 data logger was designed for NOAA and is ideally suited as the "brains" of a tilt current meter. The built-in data logger includes a USB communication interface, a microSD flash memory card, and a long-life lithium battery.

Operation

The TCM-5 Tilt Current Meter measures current using the drag-tilt principle. The logger is buoyant and is typically attached to the bottom via a short flexible tether to an anchor. Moving water tilts the logger in the direction of flow. The TCM-5 contains a 3-axis accelerometer and 3-axis magnetometer for measuring tilt and bearing. The resulting orientation data is converted to current by applying calibration coefficients with the included software.

Key Features & Benefits

10,000 meter depth rating
Water velocity for a fraction of the cost of an acoustic meter
Tilt compensated compass for bearing measurements
Simple & rugged design is easy to deploy from a ROV
Internal temperature sensor is accurate to +/-0.1C
8 GB memory card eliminates memory concerns
Lithium battery allows continuous 4Hz sampling for more than 1 year
USB 2.0 with standard cable and drag and drop data file offload
Easy meter configuration and data conversion with Windows^® software (free download).

Package Contents

TCM-5 Tilt Current Meter
Lithium battery (installed in logger)
8 GB microSD card (installed in data logger)
1 m (3 ft) USB A to micro-B Cable
2 spare set of O-rings, backup rings and lubricant
30 cm (12") lanyard
microSD-to-SD card adapter

Datasheet TCM-5 Very Deep Water Current Meter

User Manual

Domino Software

Domino Software is Lowell Instrument's Python based, open source software for use with the data loggers and current meters. It is used forconfiguration and control of meters, as well as for conversion of binary data to useful formats. It can be downloaded here.

System Requirements Windows for Domino
