Key Features AmScope HHD Series 8.3 MP Professional Polarizing Handheld Digital USB Microscope

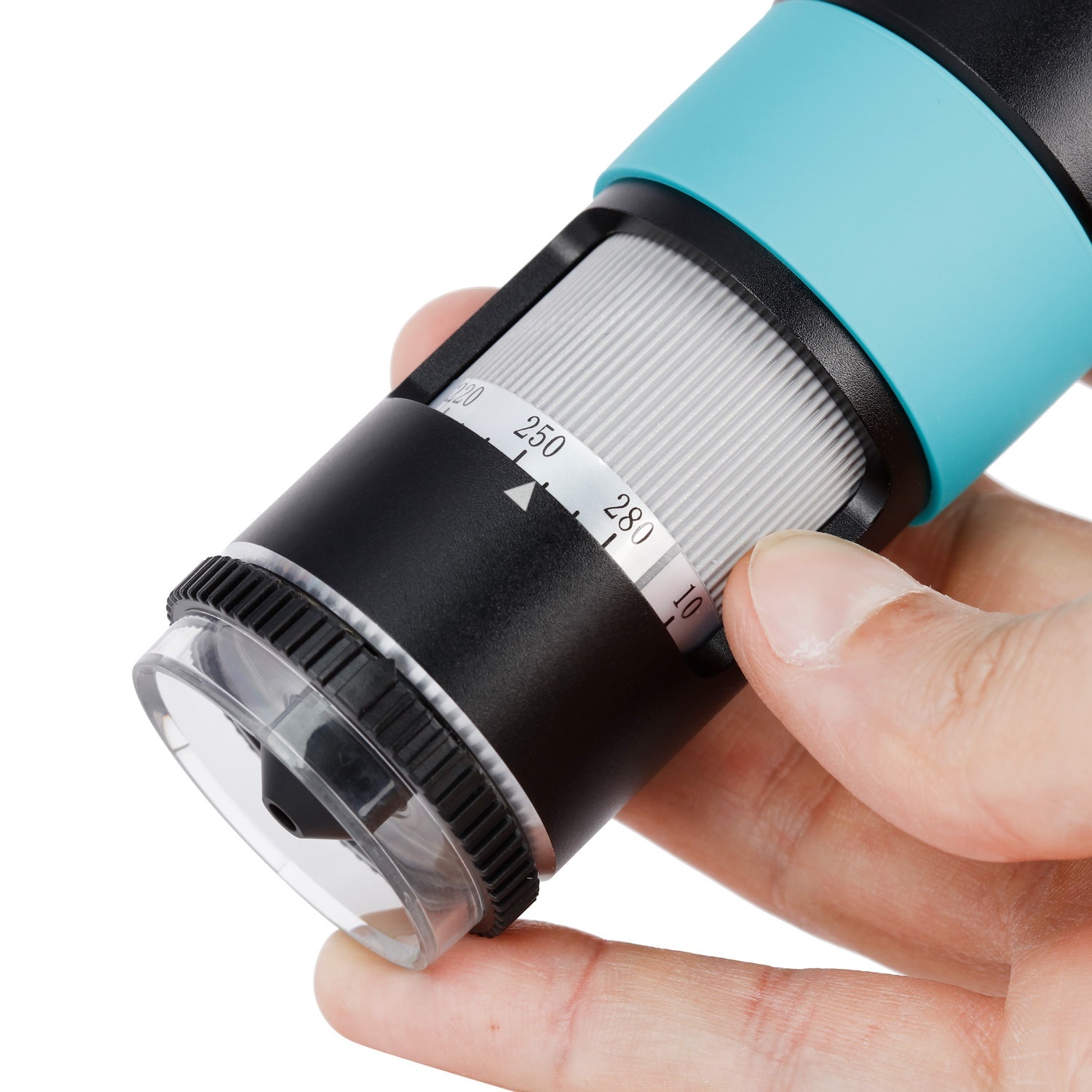

- Professional quality USB powered handheld digital microscope with continuous 10X to 280X magnification.
- Built-in 8.3MP (30FPS@3840x2160) digital camera for capturing high-quality images and videos.
- Comes with an adjustable polarizer that utilizes polarized light to reveal detail in an object, perfect for the study crystalline and fibrous structures.
- 5G high grade optical glass with multi-layer anti-reflection coating.
- 8 LED ring illuminator with adjustable illumination.
- The perfect handheld microscope for manufacturing, quality control inspectors, medical professionals, scientific researchers, and even hobbyists for a multitude of specimens and subjects.
- User-friendly software for Windows offers editing/processing and advanced features including Stitching and EDF for Windows/Mac OS/Linux.

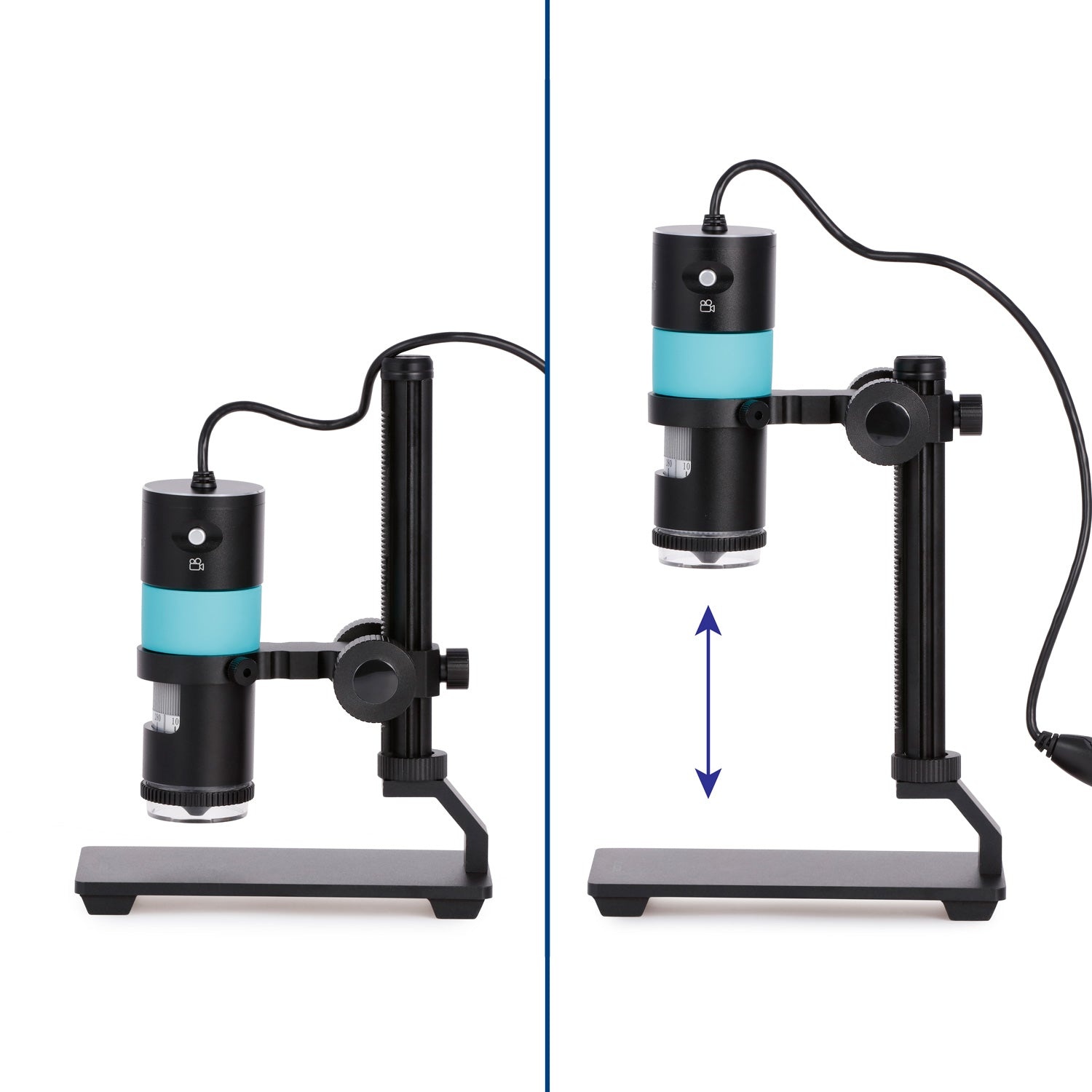

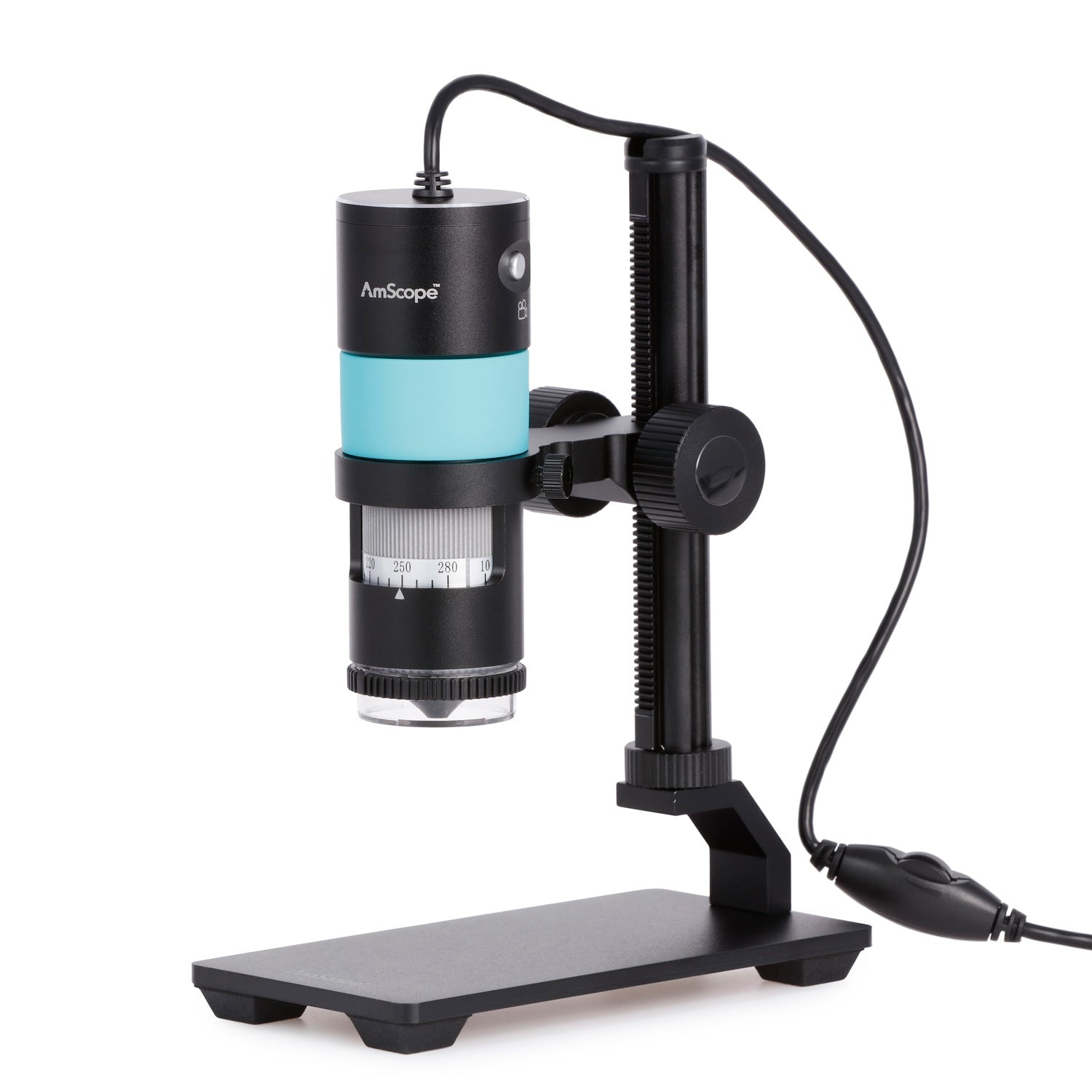

- Includes both a simple metal track stand that allows for steady shots when viewing at higher magnifications, minimizing shaking and keeping your specimen in sharp focus.

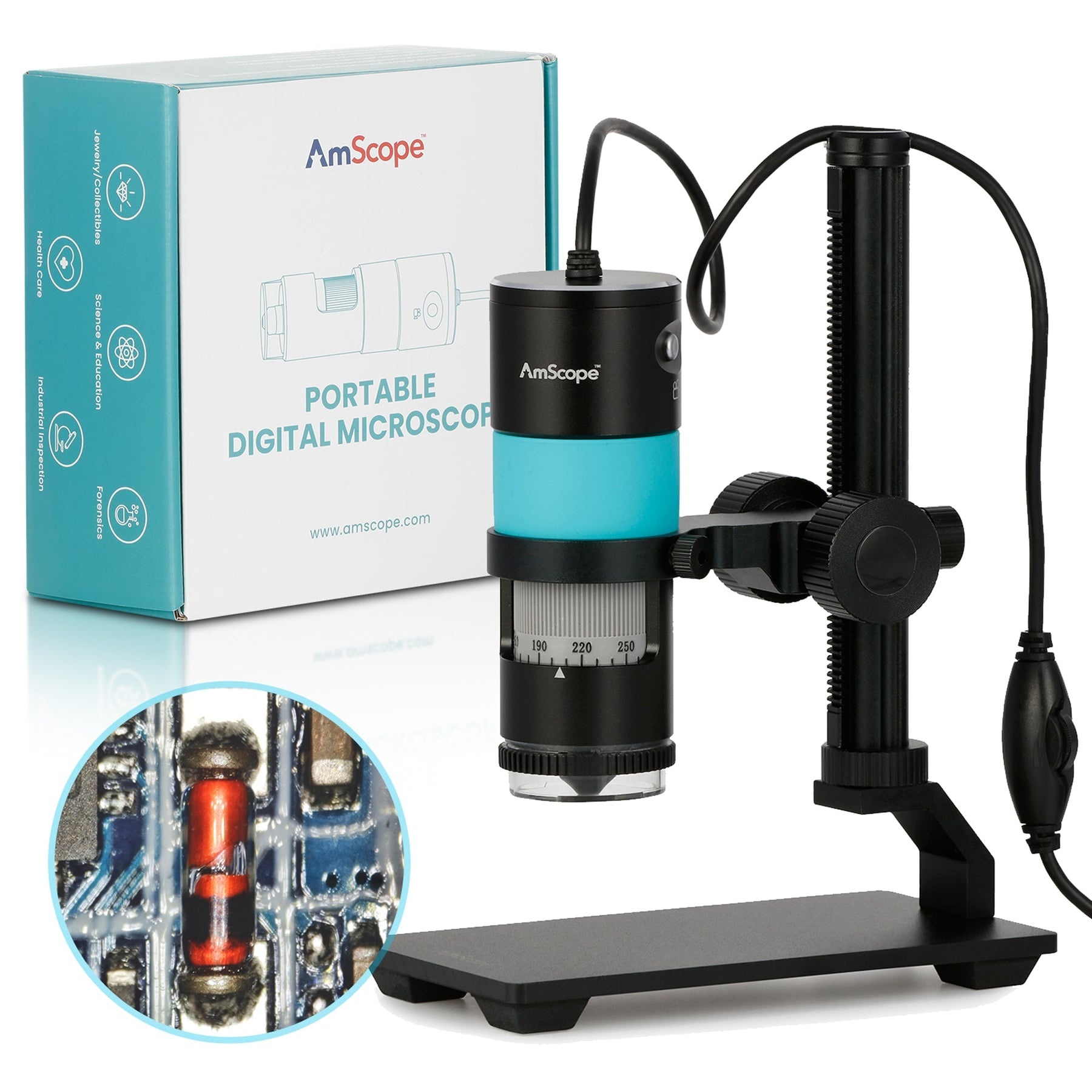

The HHD Professional Series Portable USB Microscopes are easy to use, high power scopes. With continuous magnifications from 10x to 280x, it's ideal for quality control inspectors, medical professionals, and scientific researchers in addition to hobbyists and beginners for viewing stamps, coins, bugs, plants, rocks, skin, gems, circuit boards, and more. With the higher power magnifications, you can even view traditional microscope slides under transmitted illumination. Comes with an adjustable polarizer that utilizes polarized light to reveal detail in a specimen, perfect for the study crystalline and fibrous structures.
Using the AmScope Software, you can capture your specimens using the built-in 8.3MP camera. Press the shutter to save images and high-resolution video directly to your PC via USB connection. The 8 LED illuminator ensures your specimens are clear and bright. Includes a basic metal stand that allows for steady shots and come in handy when viewing at higher magnifications, minimizing shaking and keeping your specimen in sharp focus.
Specifications AmScope HHD Series 8.3 MP Professional Polarizing Handheld Digital USB Microscope
- Sensor: 8.3M/IMX415(C) 1/2.8" (5.57x3.13)
- Sensor size (in mm): 1.45x1.45
- Dark Signal Sensitivity: 300mv met 1/30s, 0,13mv met 1/30s
- FPS/Resolution: 30@3840x2160, 30@1920x1080, 30@1280x720, 30@960x540
- Exposure: 0,1-2000 ms
- Spectral Range: 380-650nm (with IR-cut Filter)
- White Balance: Auto White Balance
- Capture/Control SDK: Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
- Recording System: Still Image and Video
- Cooling System: Natural
- Operating Temperature (in Celsius): -10 ~ 50
- Storage Temperature (in Celsius): -20 ~ 60
- Operating Humidity: 30-80%RH
- Storage Humidity: 10-60%RH
- Power Supply: DC 5V over PC USB Port
- Optical Lens: 5G High Grade Optical Glass with Multi-layer Anti-reflection Coating
- Optical Magnification: 0.1x~3.3x(33x)
- Illumination: 8 LEDs
| Magnification | Working Distance | Field of View (X) | Field of View (Y) |
|---|
| 10 | 134.63mm | 48.09mm | 27.07mm |
| 50 | 33.51mm | 9.62mm | 5.41mm |
| 100 | 20.32mm | 4.81mm | 2.71mm |
| 150 | 15.97mm | 3.21mm | 1.80mm |
| 200 | 13.75mm | 2.40mm | 1.35mm |
| 250 | 12.42mm | 1.92mm | 1.08mm |
| 280 | 11.85mm | 1.72mm | 0.97mm |
Packing List AmScope HHD Series 8.3 MP Professional Polarizing Handheld Digital USB Microscope
- Handheld Digital Polarizing Microscope
- Removable Grip
- Metal Stand
