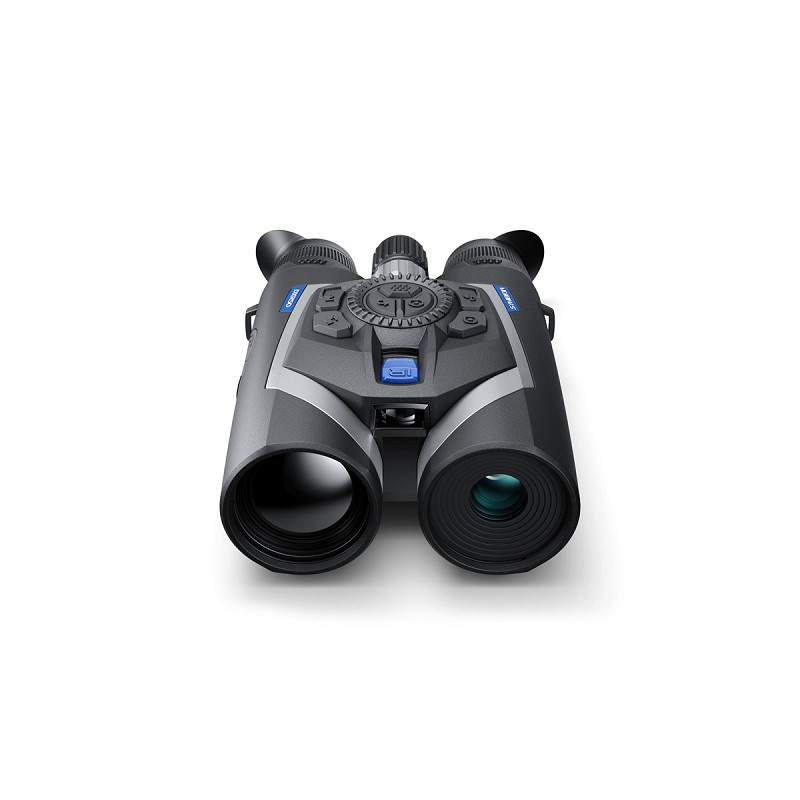

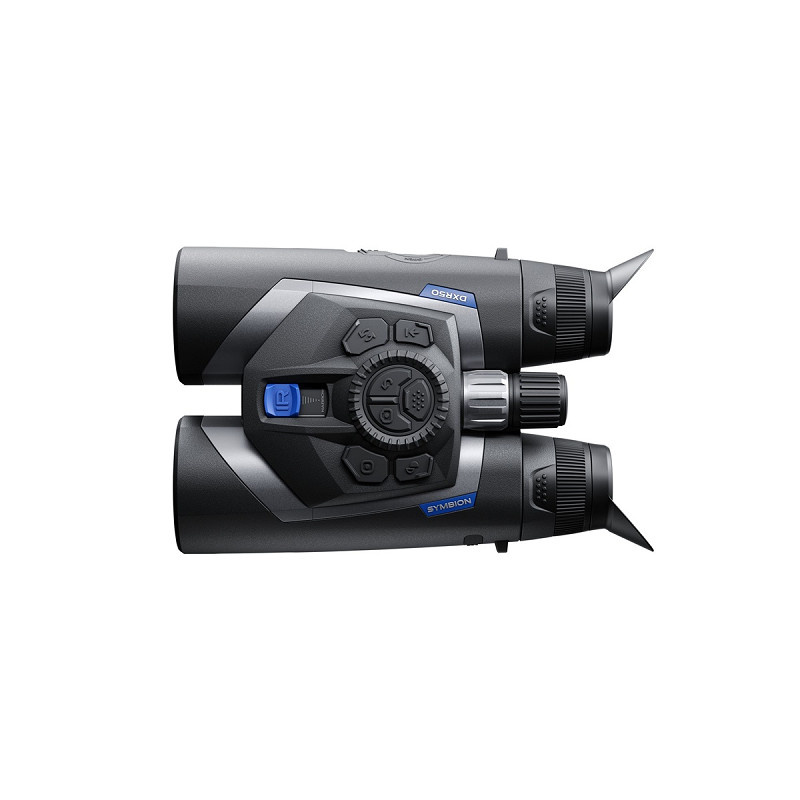

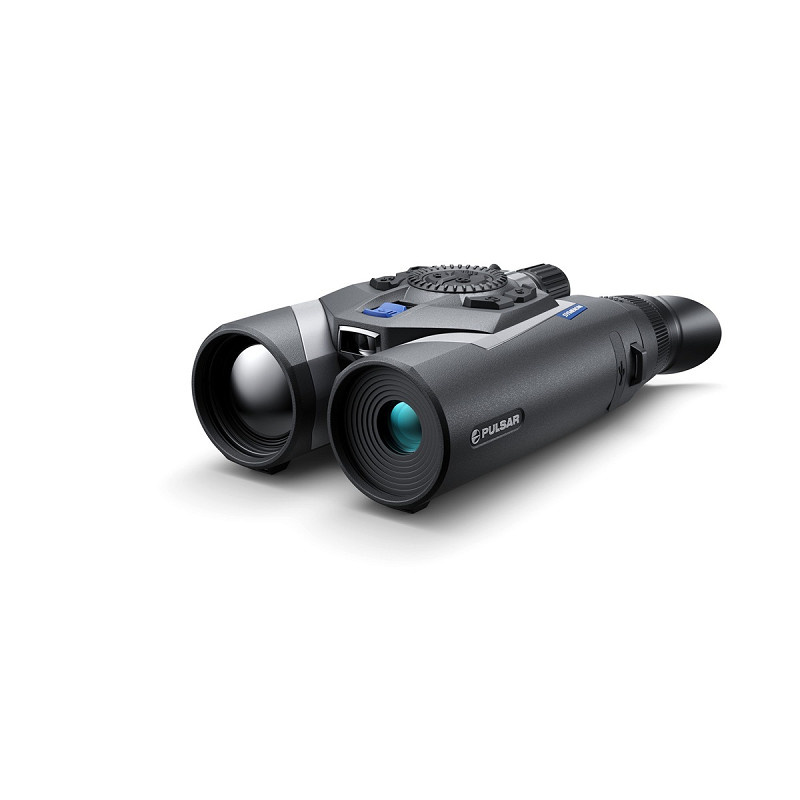

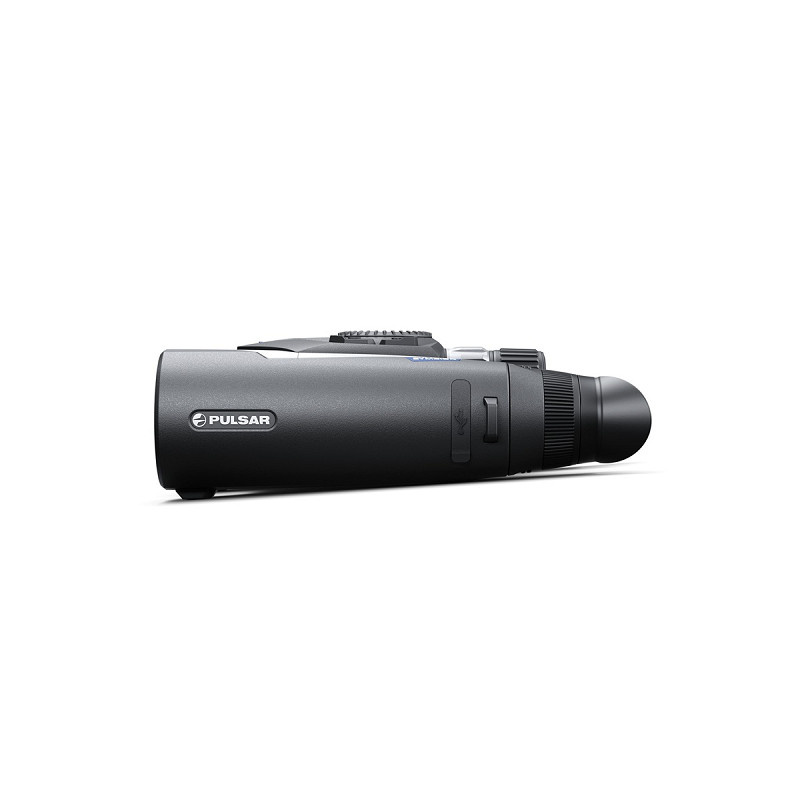

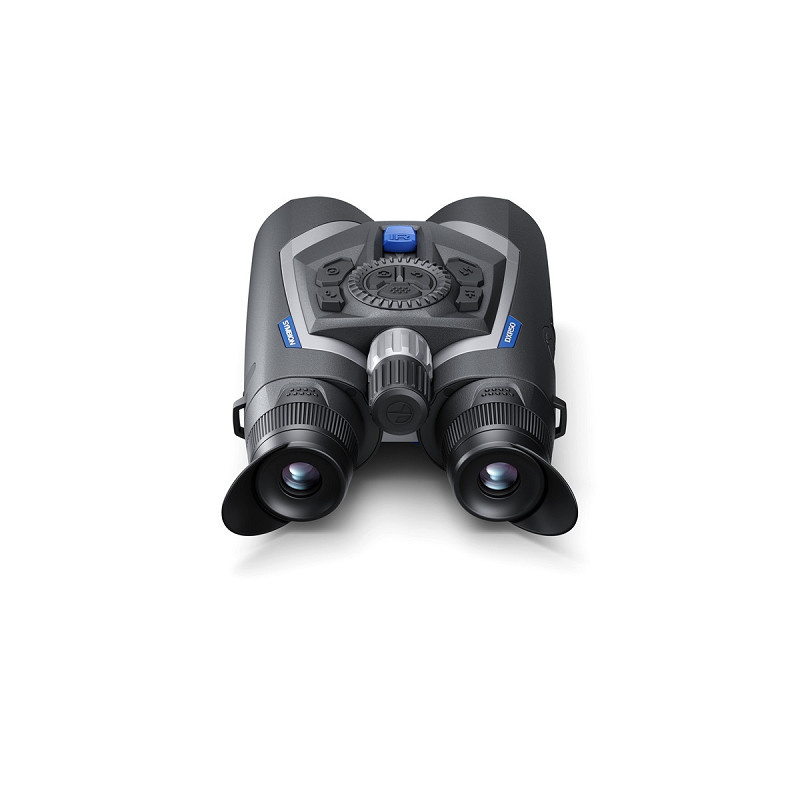

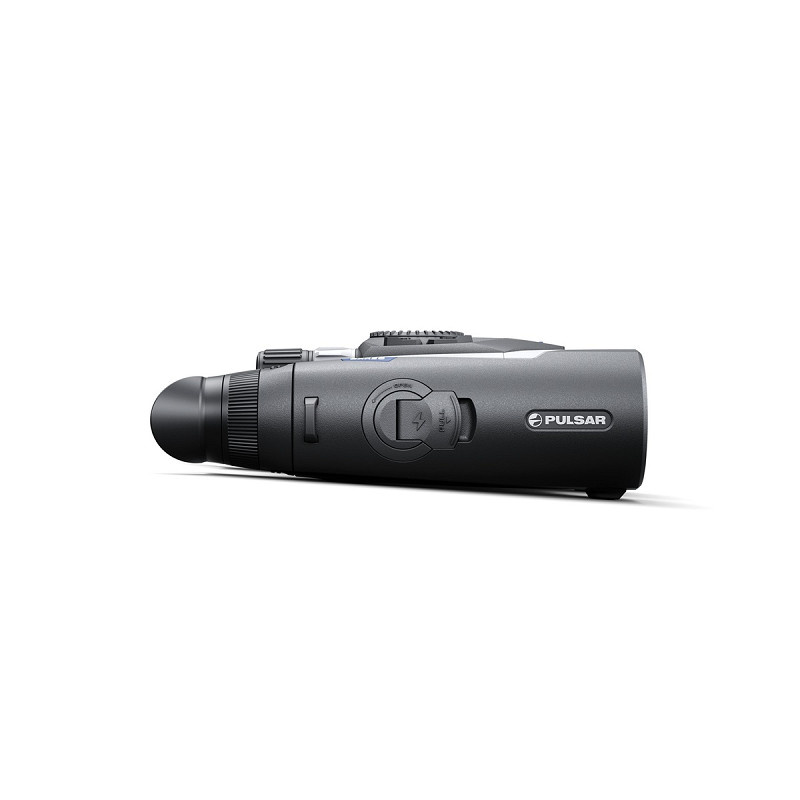

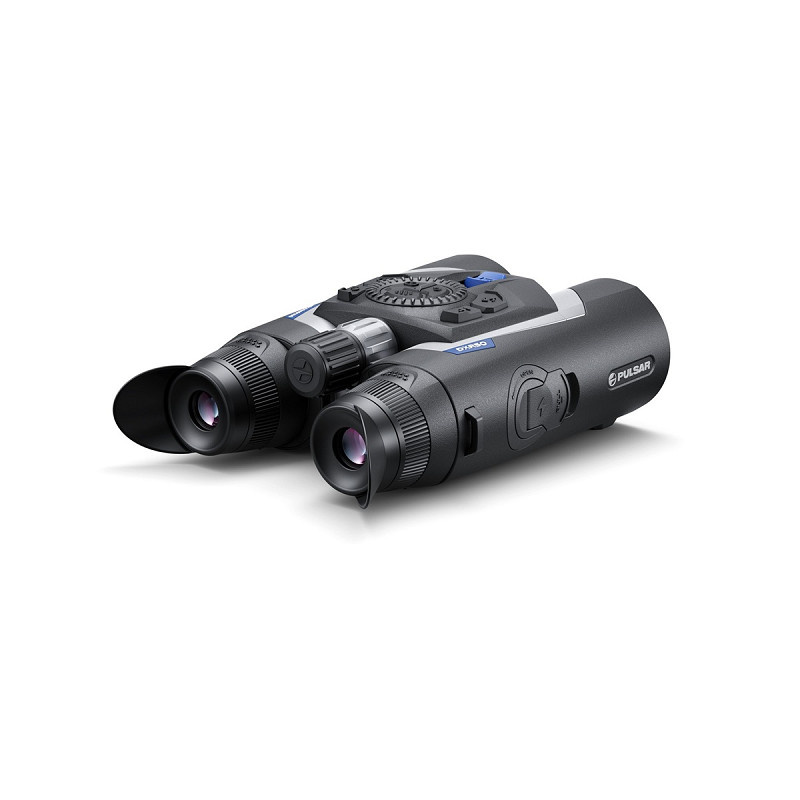

The Pulsar Symbion LRF DXR50 multispectral binoculars are designed for users who demand top-tier performance in every situation. This advanced model integrates thermal imaging with digital day and night vision, delivering reliable visibility regardless of lighting or weather conditions.
Equipped with a sensitive 640x480 thermal sensor, the device detects even the smallest temperature differences. This results in a clear and high-contrast image, even in rain, fog or low thermal contrast environments. With a detection range of up to 2300 meters, it is ideal for long-distance observation.
In addition to thermal imaging, the binoculars feature a digital optical channel that provides natural color viewing during daylight and twilight. Multiple viewing modes and picture-in-picture functionality allow quick switching between wide overview and detailed focus.
The built-in laser rangefinder measures distances up to 1500 meters with high accuracy, supporting precise observation and distance estimation.
The rugged magnesium housing ensures durability in demanding environments and offers protection against water and dust according to IP67 standards. Combined with ergonomic handling and long battery life, this makes the DXR50 suitable for extended field use.
Features
- Multispectral imaging with thermal and digital channels
- Highly sensitive thermal sensor for detailed detection
- Detection range up to approximately 2300 meters
- Integrated laser rangefinder up to 1500 meters
- Flexible zoom and magnification options
- Picture-in-picture mode for enhanced detail
- High-contrast AMOLED display
- Photo and video recording with internal storage
- Wireless connectivity via app
- Durable, weather-resistant housing
Specifications
| Sensor | @12µm 640x480 (Thermal), 3840x2160 (Digital) |
| Sensor NETD | < 35 mK |
| System NETD | < 18 mK |
| Frame Rate | 50 Hz |
| Objective lens | F50/1.0 (Thermal), F50/1.8 (Digital) |
| Magnification | 4x-32x (Thermal), 6.5x–26x (Digital) |
| Field of view, degrees | 8.8° (Thermal), 5.8° (Digital) |
| Field of view, m at 100 m | 15.4 m (Thermal), 10.2 m (Digital) |
| Diopter adjustment | -5 / +5 |
| Detection range | 2300 m (Thermal) |
| Interpupillary distance adjustment | 62.5 - 74 |
| Eye relief | 13 mm |
| Display type | MicroLED (AMOLED) |
| Display resolution | 1920 x 1080 |
| Protection rating | IP67 (waterproof) |
| Operating temperature | -25 to 50 °C |
| Output voltage | 3.7 V |
| Battery type | 2x external APS5 |
| Capacity | 4900 mAh |
| Operating time (at 22°C) | 10 hours with 2x APS5 |
| External power supply | 5V/9V USB Type-C |
| Housing | Magnesium alloy |
| Dimensions | 207 x 132 x 73 mm |
| Gewicht | 1000 grams |
Scope of delivery
- Pulsar Symbion LRF DXR50 Multispectral Thermal Imaging Binoculars
- Carrying case
- USB-C charging cable
- Lens and eyepiece protection
- Cleaning cloth
- Manual / Quick Start Guide
- Batteries (included)
