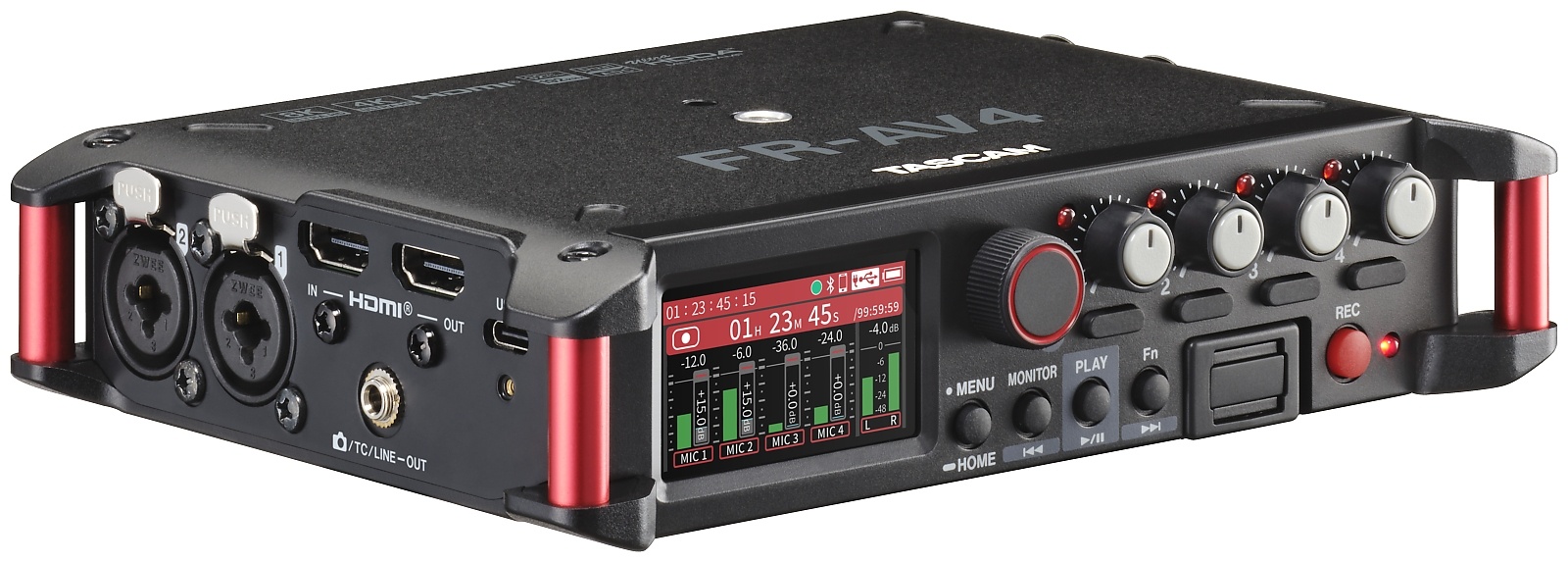

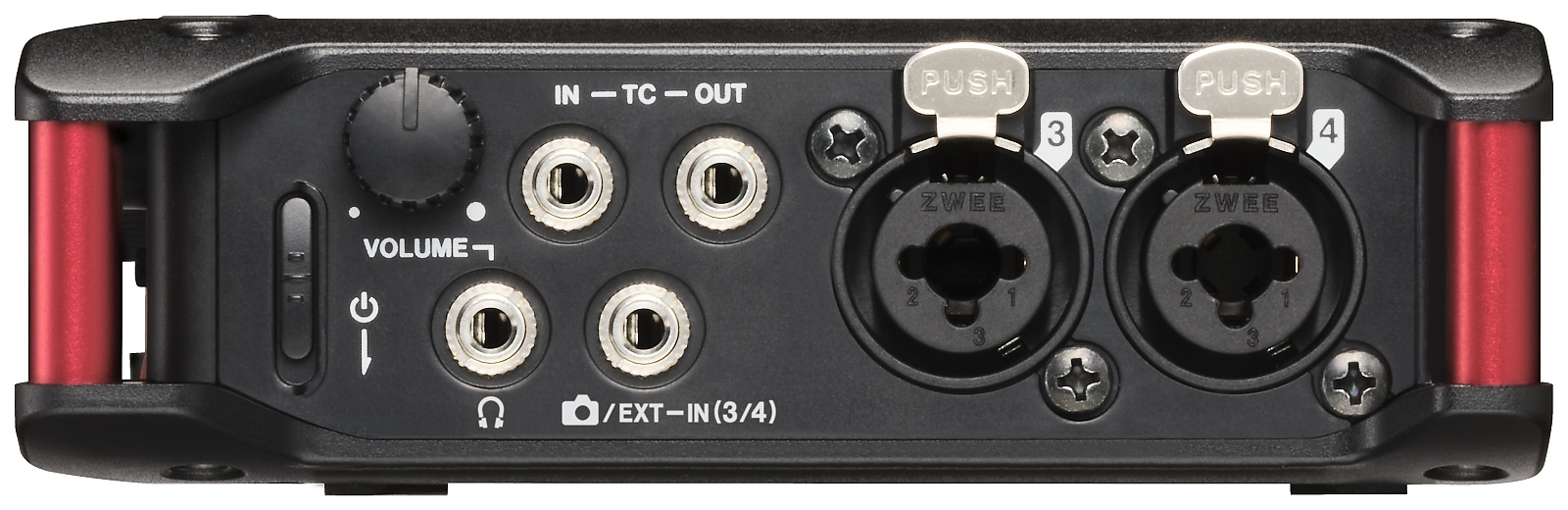

The Tascam FR-AV4 Audio recorder is more than just a 4-track field recorder – it’s an essential audio solution for videographers, researchers, content creators and audio professionals.
With dual A/D converters, Tascam’s Ultra HDDA low-noise microphone preamps, and 32-bit float resolution, the Tascam FR-AV4 Audiorecorder captures every nuance, from the quietest of whispers to the largest explosions, all with crystal clarity and no fear of clipping. Thanks to a built-in timecode generator and HDMI sync to firmly lock audio to video, this compact and rugged tool is ideal for professional audio recording in virtually any environment.
The Tascam FR-AV4 Audio recorder can also be combined with other devices such as the H2d-XLR Hydrophone, Pettersson D240x Bat Detector, or smartphone. Due to its high sampling rate, the Tascam FR-AV4 Audiorecorder in combination with Clippy Ultra XLR Microphones makes it possible to record ultrasonic sounds from bats.
Professional-Grade Audio Fidelity in Any Environment
Dual A/D converters and 32-bit float resolution capture every detail with over 133 dB of dynamic range and zero clipping. Each of the four XLR/TRS combo inputs features low-noise Tascam Ultra HDDA preamps (EIN –127 dBu), delivering pristine clarity, even in the most unpredictable environments.
With four inputs and two outputs, the Tascam FR-AV4 Audio recorder's built-in mixer offers flexibility while simultaneously capturing all four channels – plus a stereo mix – for 6-track recording directly to SDXC media.
A built-in timecode generator ensures solid synchronisation across your entire setup with no additional gear required. It offers a wide range of timecode sync options, including HDMI I/O, dedicated Timecode In and Out, timecode output for a camera and wireless sync with Atomos via Bluetooth (optional AK-BT2 adapter required).

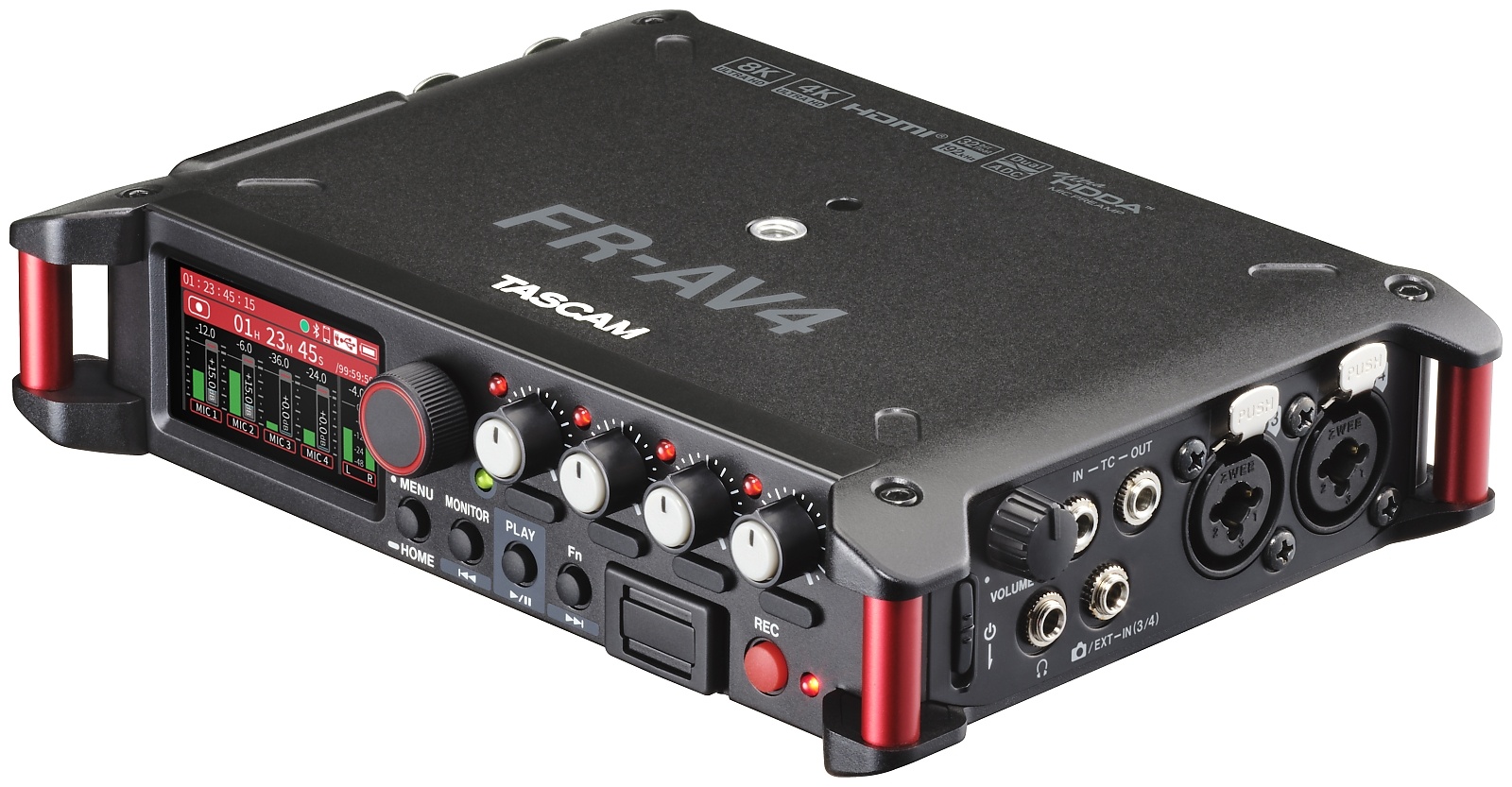

The Tascam FR-AV4 Audio recorder is ideal for creators on-the-go since it is tough enough for demanding shoots, but compact enough for small mobile setups. Its lightweight aluminium chassis is built to follow wherever your project leads you – be it in the studio, on location or in the field.
The recorder doubles as a 6-in/2-out USB-C audio interface for Mac, Windows, iOS and Android devices – delivering the same massive dynamic range and no-clip recordings you get on location.

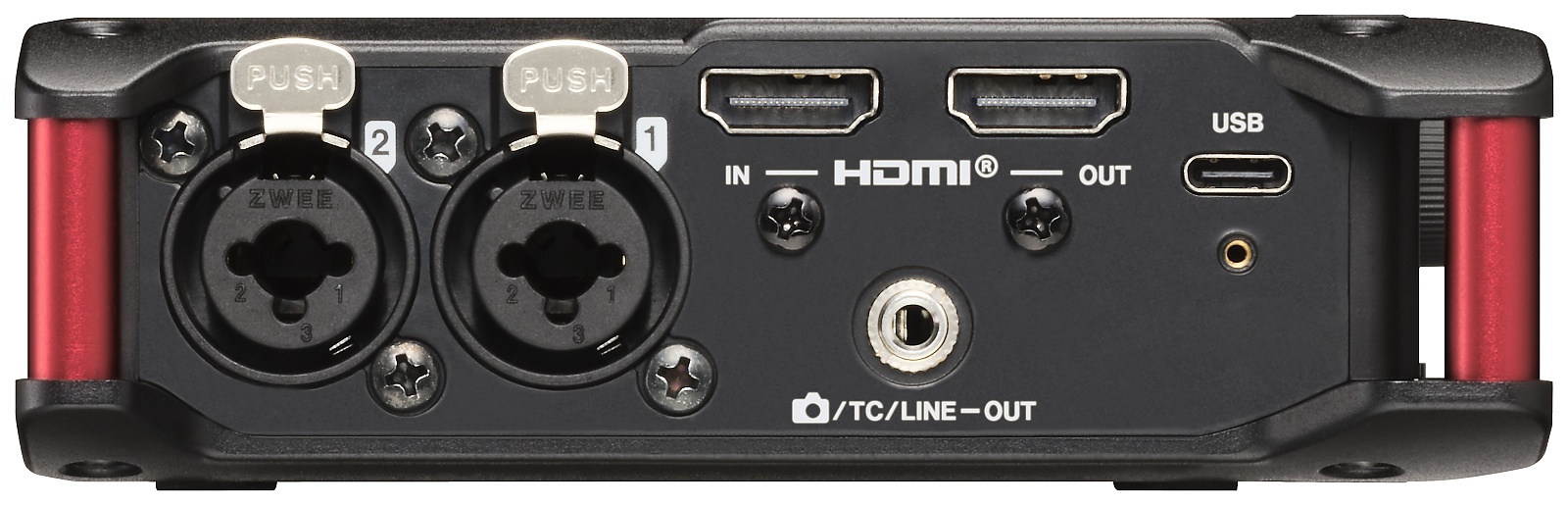

Synchronisation via HDMI aligns audio and video with precision using a shared master clock and timecode. Record trigger functionality allows you to start and stop audio recording directly from a supporting camera – no extra steps, no worry of missed takes. With full 4K/8K video pass-through and embedded multi-channel audio support, this audiorecorder effortlessly integrates with monitor recorders such as Blackmagic and Atomos. Simply connecting an Tascam FR-AV4 Audio recorder to a camera via HDMI ensures precise synchronisation of video and audio. This also enables the recorder to start and stop recording automatically in response to camera operation.
Four audio tracks plus a stereo mix can be recorded on the Tascam FR-AV4 Audio recorder. The 4K/8K video signal passes through the audiorecorder, and is recorded on the monitor recorder. In addition, this allows the camera’s audio to pass through, and be recorded as part of the multitrack audio on the monitor recorder.
If four recording tracks are not enough, you can connect multiple Tascam FR-AV4 Audio recorder units via HDMI to achieve a cascade. This synchronises the clock between the devices, and recording can be started and stopped from the first device in the chain.
With the optional AK-BT2 Bluetooth adapter, the Tascam FR-AV4 Audio recorder allows you to monitor your audio sources wirelessly. Both wired and wireless outputs can be used simultaneously with independent volume control, enabling multiple users to listen via headphones or speakers at the same time.

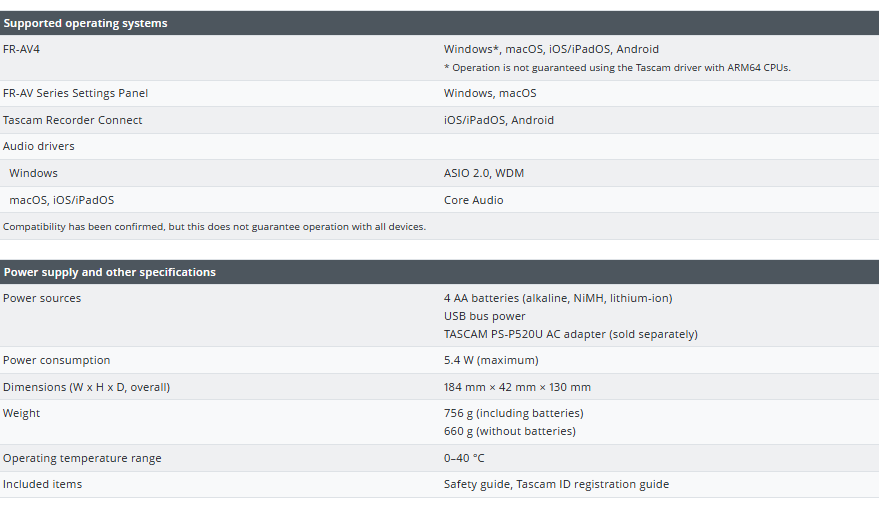

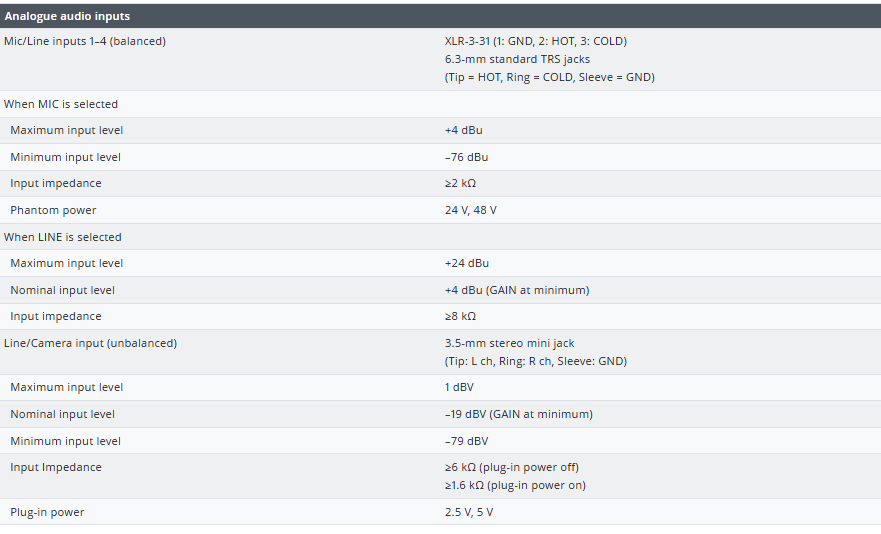

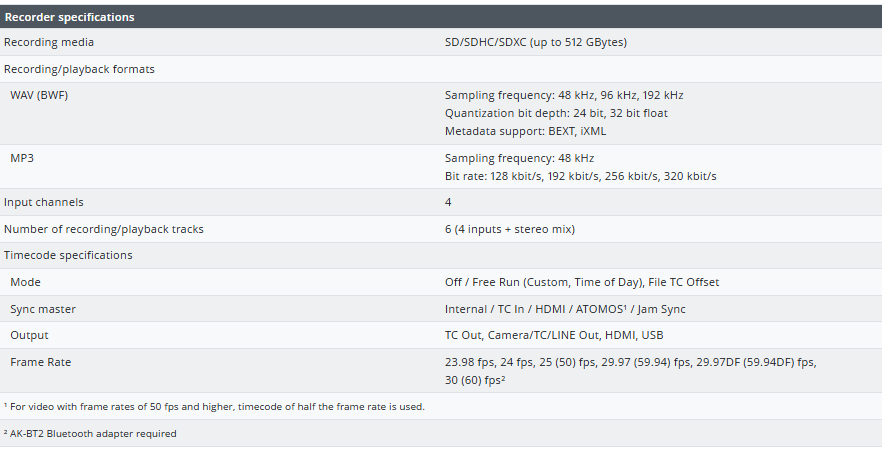

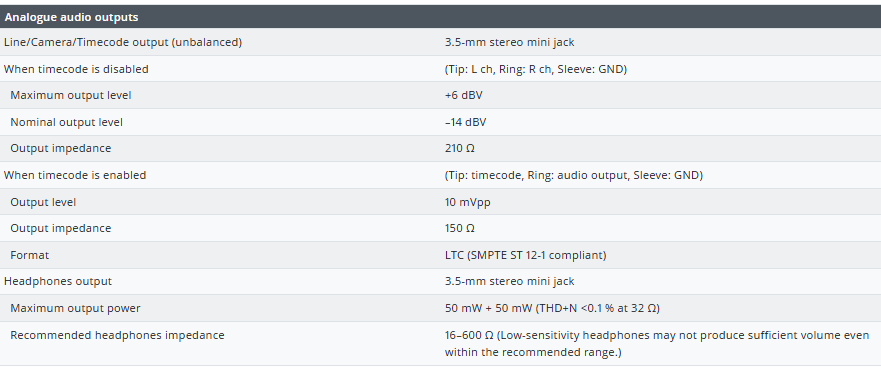

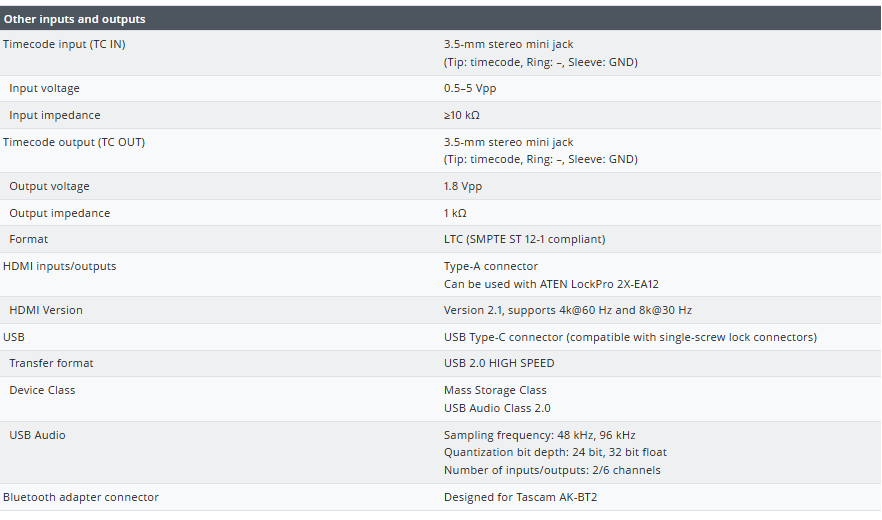

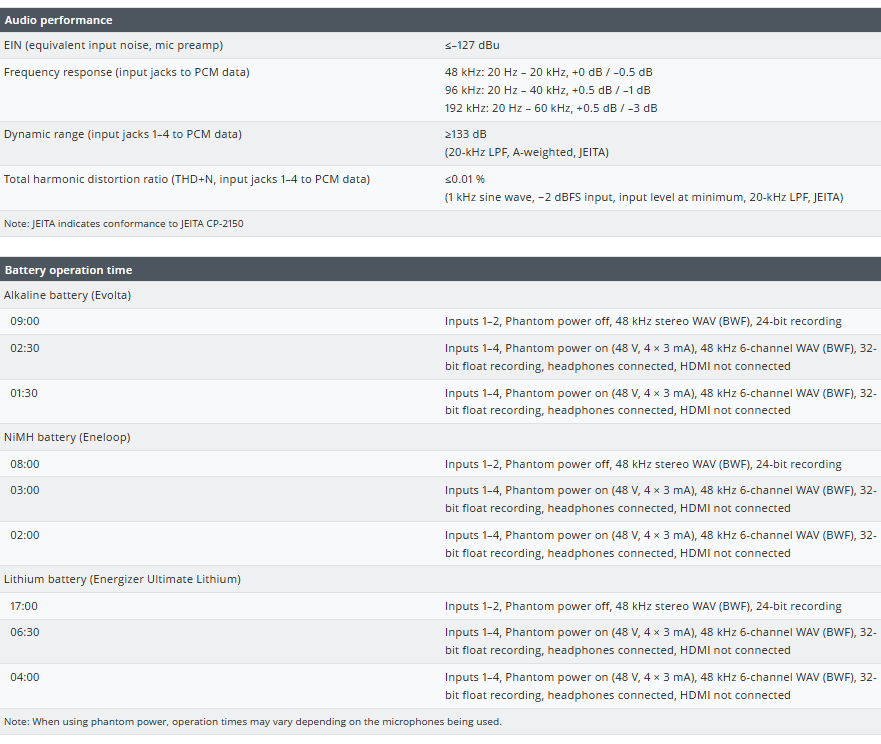

Technical specifications Tascam FR-AV4 Audio recorder:
User manual
