    H2d-XLR Hydrophone

    €274,15
    • Including 21% Tax: €274,15
    • Excluding VAT: €226,57
    32 In stock: Ordered on working days before 17:00, shipped the same day.
    The H2d-XLR hydrophone can be connected to audio recorders and computers via the mic preamp for recording frogs and fish, among other fauna.... Show more
    • Free shipping in the Netherlands from € 35, -
    • Ordered before 5 p.m. on working days? Shipped the same day!
    • 14-day money back guarantee
    • We are happy to think along!

    Product description

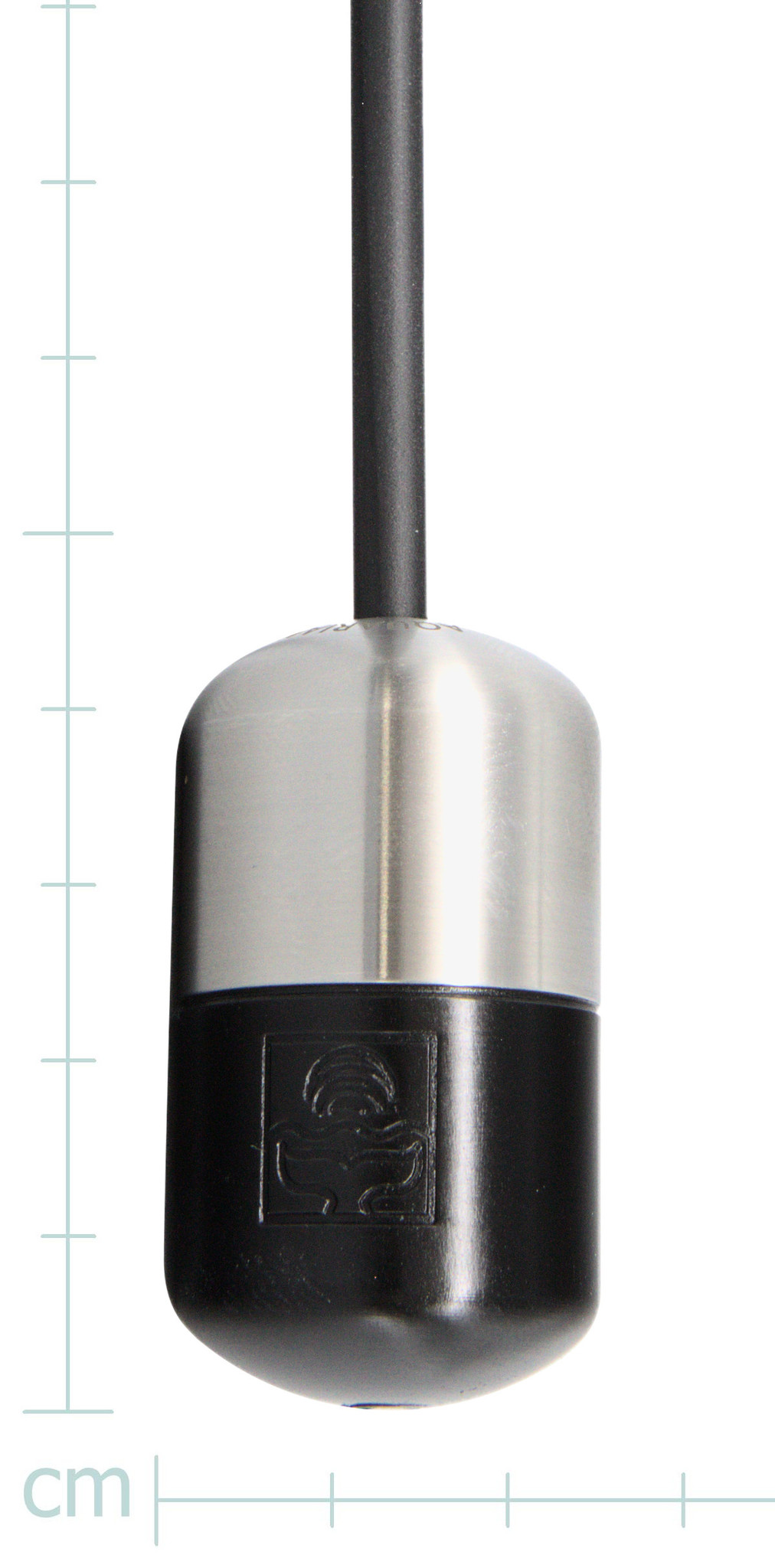

    The H2d hydrophone is designed to offer great sensitivity and low self noise in the human auditory range while being rugged, compact and affordable. Its small, streamlined shape and high specific gravity will help maintain a low working depth in mild wind and currents. Its compact size and flexible cable make it very portable and simple to use. It is available with either XLR or 3.5mm TRS output connectors to work with nearly every recording device with a microphone input. If both output types are needed, the user can easily adapt between the two. When both output connectors are needed, we recommend using the more robust XLR connection and adapting to 3.5mm when needed.

    The H2d utilizes the new CS6 signal conditioning board, which offers approximately 10dB better sensitivity and signal-to noise, as compared with the CS4 board that was included in the H2a.

    XLR output (H2dX)

    Used with any microphone preamp with mating connector and phantom power. In most cases, these preamps will be built into a digital recorder, mixer, professional video camera or PA system. Phantom power is required and will likely need to be switched on in your device. Any phantom voltage will work. 48V is standard, but we recommend using the lowest voltage available for lowest power consumption and noise. For more information and limited specifications, see H2dX User Guide.

    Features:

    • Low cost
    • Low self noise
    • Good sensitivity
    • Robust design handles accidental drops and temperature extremes
    • Compact (4.5mm OD) Low-noise cable with tough urethane jacket
    • Connects directly with thousands of consumer and pro audio devices
    • Adapters allow use with radio, and pro audio equipment
    • High-quality gold output connector
    • Compact size and easy hand of cable
    • High specific gravity and streamlined shape keeps hydrophone down in currents
    • 1-year limited warranty

    Specifications H2d-XLR Hydrophone

    Sensitivity: -165dB re: 1V/µPa (+/- 4dB 20Hz-4.5KHz)
    Useful range: <10 Hz to >100KHz (not measured above 100KHz, approximate sensitivity @100KHz = -220dB re: 1V/µPa)
    Polar Response: Omnidirectional (horizontal)
    Operating depth: <80 meters
    Output impedance: 6.8 KΩ (typical)
    Power: 1.2 mA (typical)
    Physical: (cable and output plug excluded)

    Dimensions (excluding cable)
    Size: 25mm x 46mm
    Mass: 105 grams
    Specific Gravity: 5.3

    Compatibility note:

    Any microphone input with 3-pin standard XLR female jack and phantom power should work.

    Specifications

    Article number
    H2dX9
